40kHz Digital Handheld LCR Meter 1832C with Carry Case, for Measuring Inductance Capacitance and Resistance Parameters 20MΩ 20mF 2000H, 0.6Vrms
Sale price
$36.00
Regular price $180.00
Skip to product information
40kHz Digital Handheld LCR Meter 1832C with Carry Case, for Measuring Inductance Capacitance and Resistance Parameters 20MΩ 20mF 2000H, 0.6Vrms
Sale price
$36.00
Regular price $180.00
- 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz 7 typical test frequency, 0.6 Vrms test level, 0.30% accuracy.

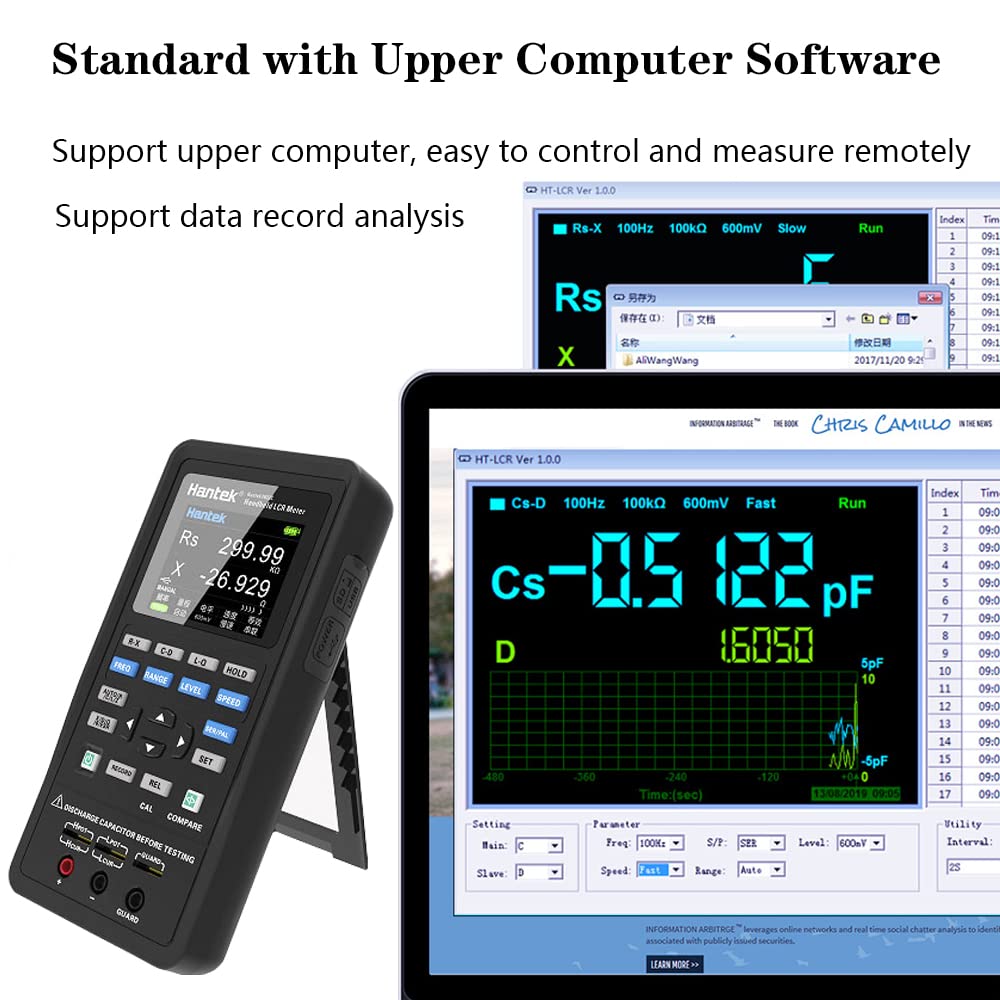

- 4/2/1 times/s measuring rate, manual/auto measurement, 3/5 terminal test lead. Support PC upper computer, easy to control and measure remotely.
- Primary L/C/R/Z, secondary X/D/Q/theta(P)/ESR. Support data record analysis.

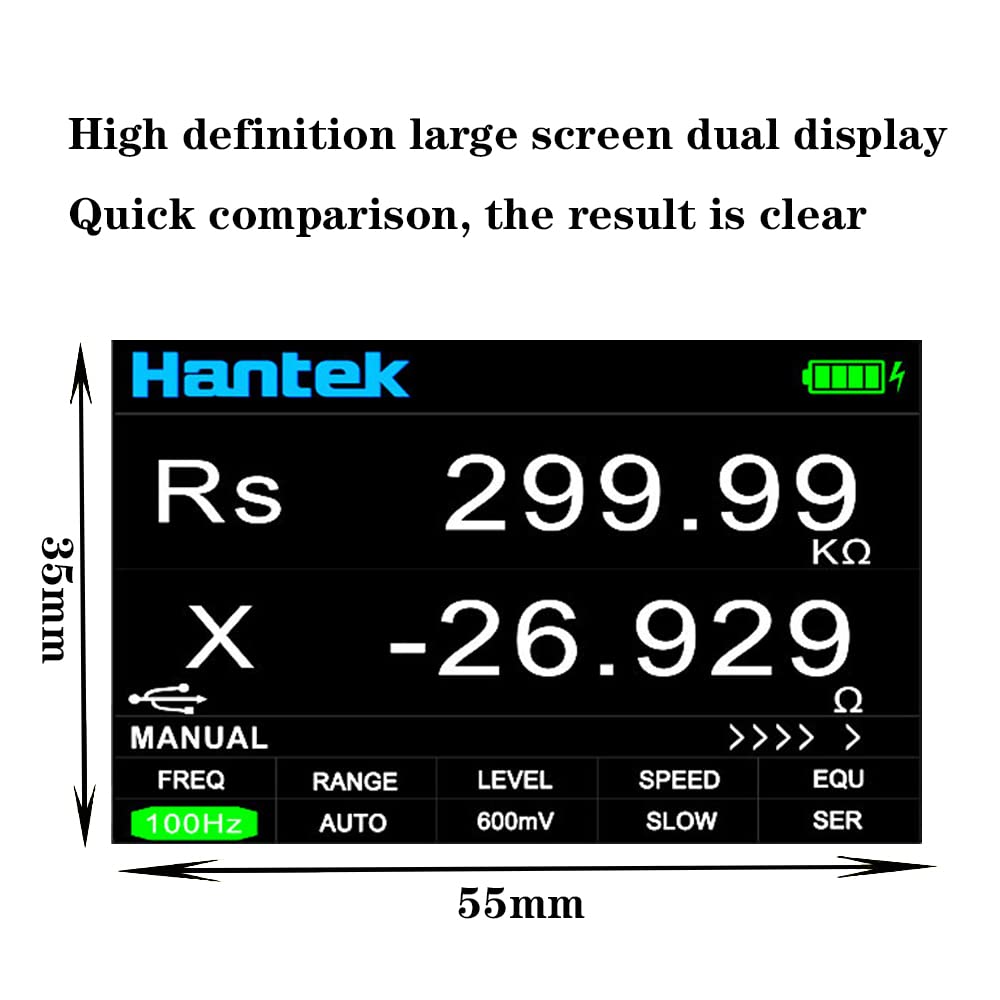

- 2.8" TFT HD LCD screen for dual display, long stand-by battery charged fully within 2 hrs; Switch between Chinese and English.

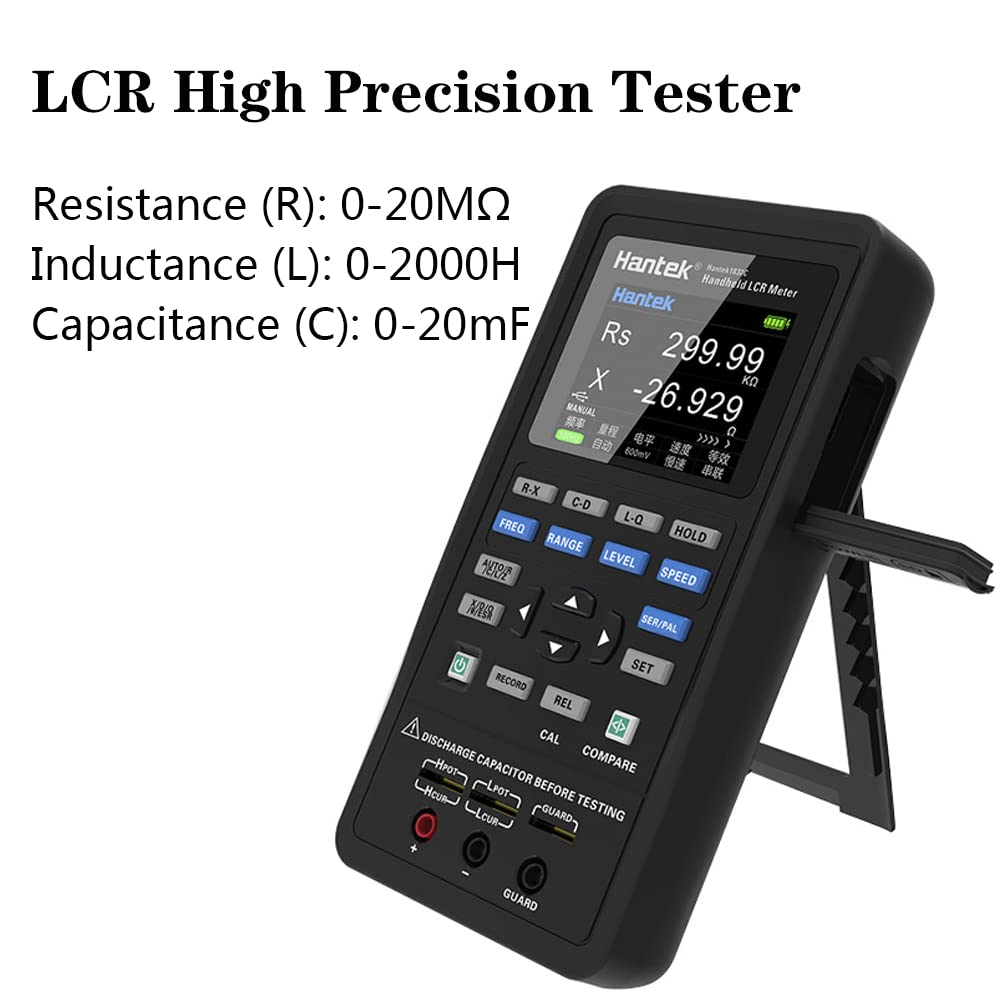

- Measurement range: 0-2000H(L), 0-20mF(C), 0-20M Omega(R); Reset function: open/short circuit calibration; mode: series and parallel.
