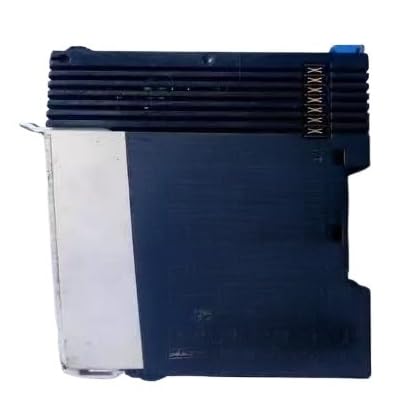

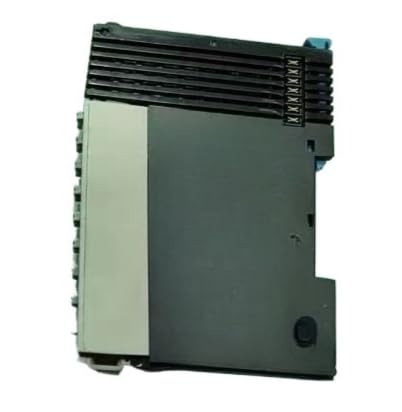

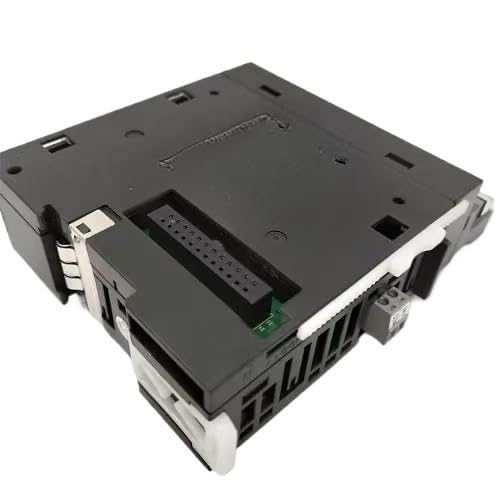

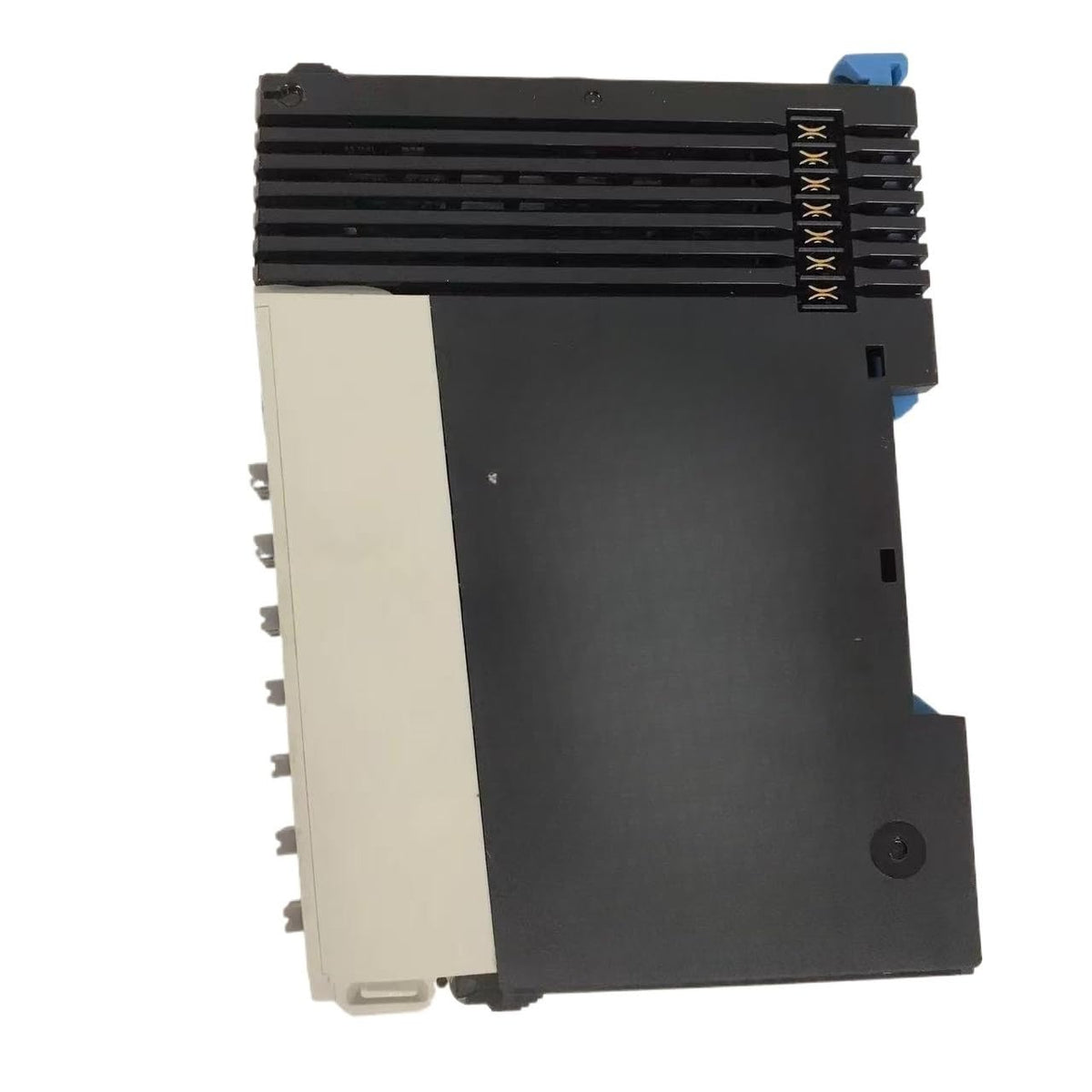

GL20S-3200END Digital Input Module, 32-Channel, Sink/Source, 24 VDC, EtherCAT/PROFINET
Sale price
$30.00
Regular price $151.00
- Model GL20S-3200END digital input expansion module with 32 input channels and sink/source (PNP/NPN) input type for flexible signal capture in automation systems
- 24 VDC input voltage class (21.6 to 26.4 VDC) with typical input current of 4 mA and ON voltage >15 VDC, OFF voltage <5 VDC
- Fast 100 µs hardware response time (ON/OFF) with configurable software filter from 0.25 ms to 32 ms for noise suppression
- IP20 protection rating with operating ambient temperature of -20 to +55 °C and humidity tolerance less than 95% (no condensation)
- Requires external terminal block (T024-K) and I/O extension cable (XA3210A-40-L series) for connection, available separately
