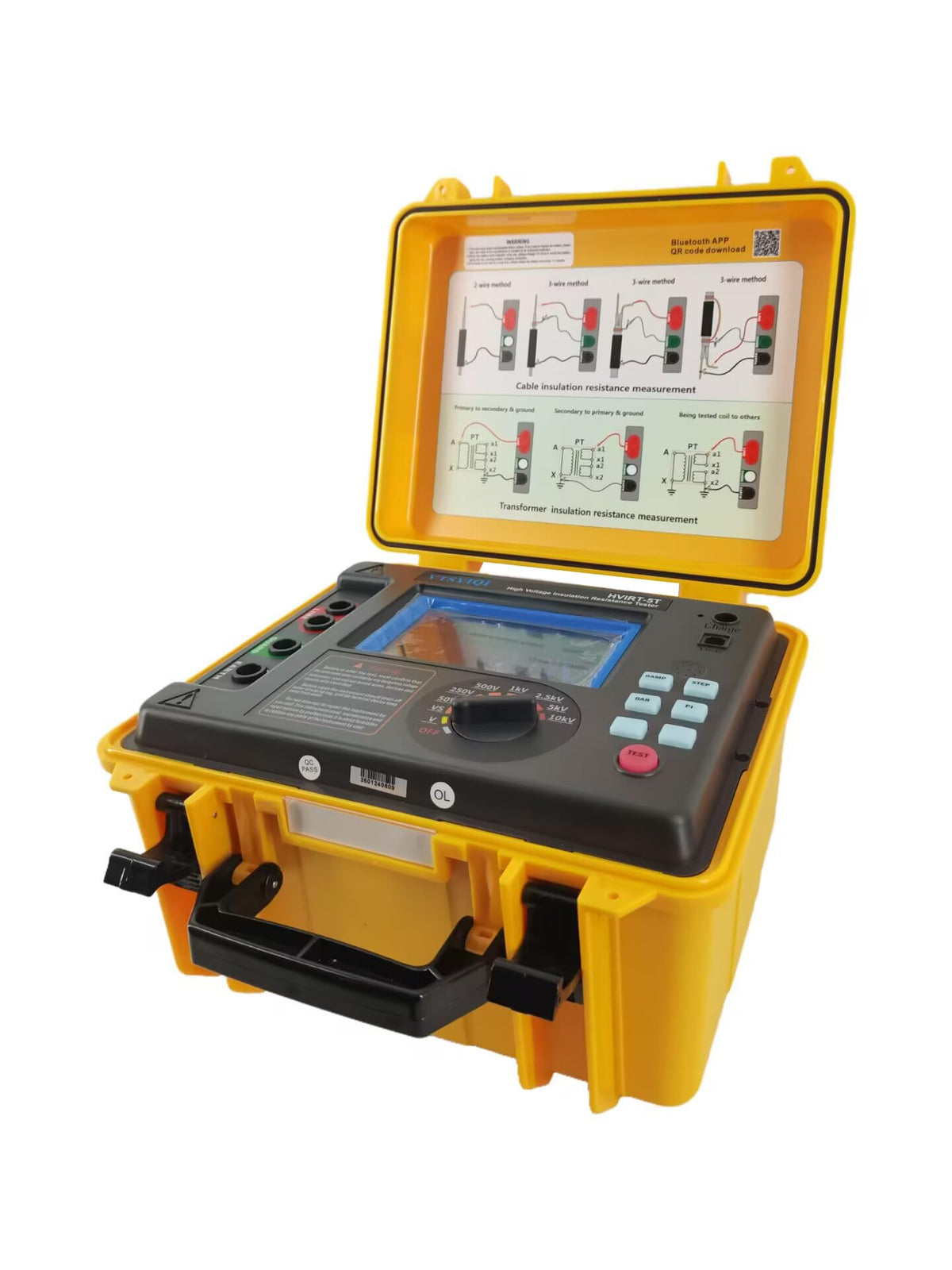

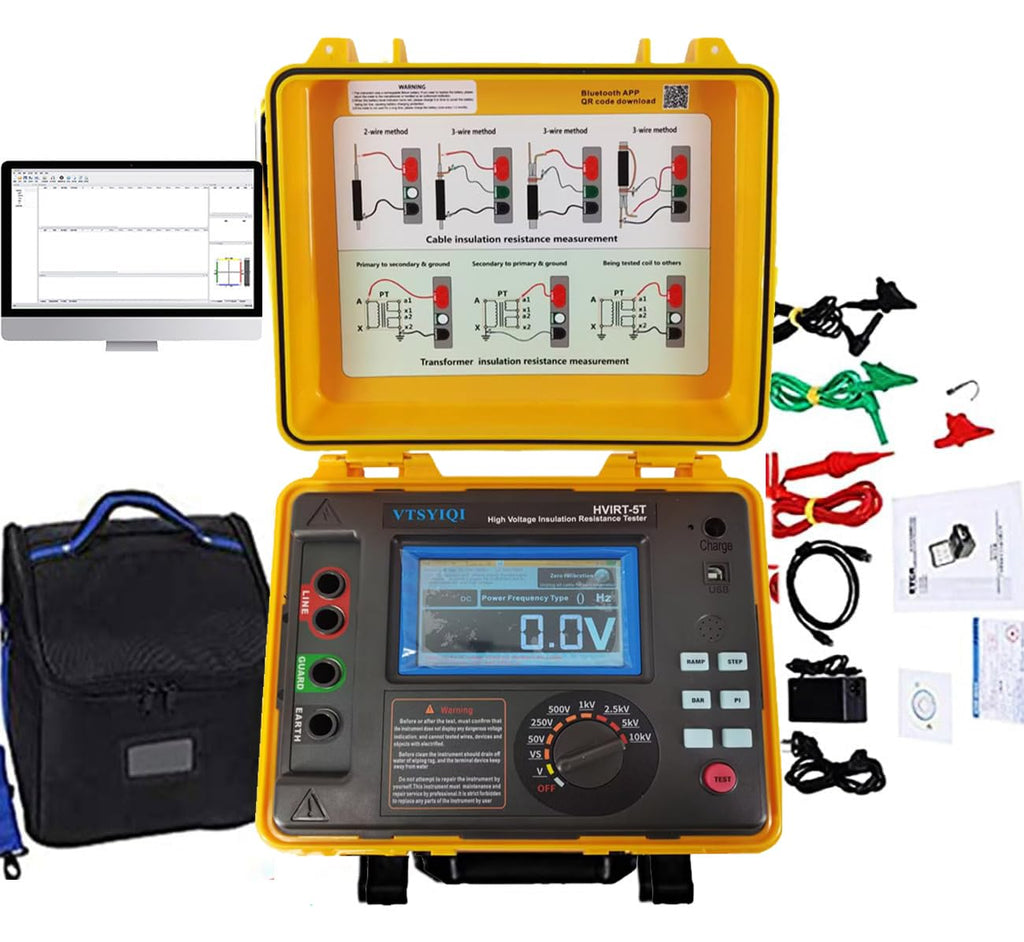

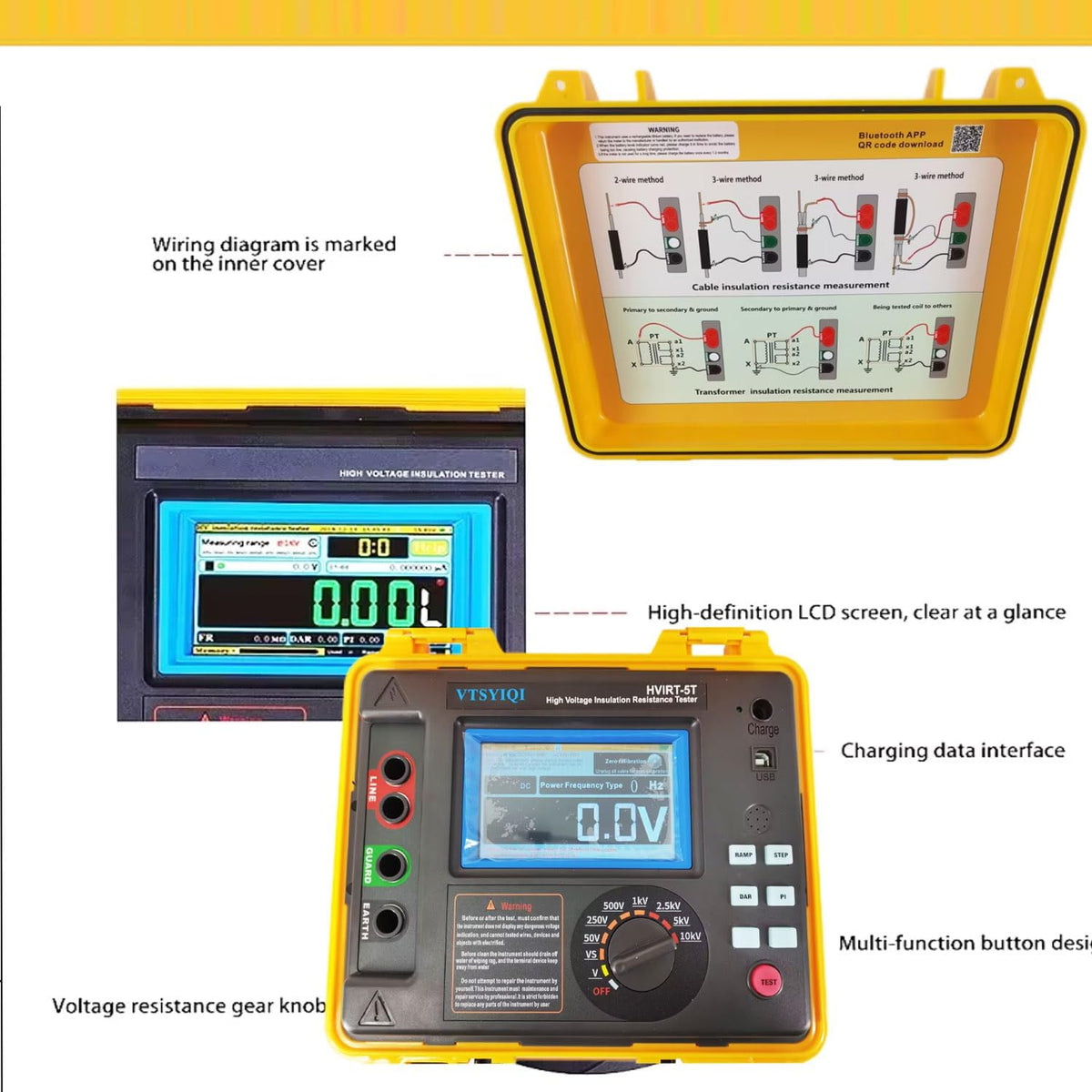

High Voltage Insulation Resistance Tester Insulation Resistance Tester Kit 10 Teraohms Resistance with 10kV Voltage for Cable Motor Generator Insulation Resistance Testing
Sale price
$186.00
Regular price $929.00
- Suitable for insulation resistance testing of cable, motor, generator, transformer, mutual inductor, high voltage switch, arrester and other large equipment.
- Insulation Resistance Range：0.5MΩ～10TΩ Max Short Circuit Current 5mA Polarization Index Test（PI）Dielectric Absorption Ratio Test（DAR）
- Rated Voltage：250v~10Kv（6 gears） Step Test Mode(STEP) Ramp Test Mode (RAMP) Custom Setting Output Voltage Custom Setting Test Time 10s~60min
- Output Shout Circuit Current：≥5mA Voltage monitor function, Test timer function , Automatic discharge function Large Capacity Rechargeable Lithium Battery USB Communication Bluetooth Communication
- Insulation resistance measurement (IR); polarization index measurement (PI); absorption ratio (DAR);Ramp Test Mode (RAMP); filtered resistance test (FR); Voltage measurement(V); capacity measurement（uF）; current measurement（nA）
