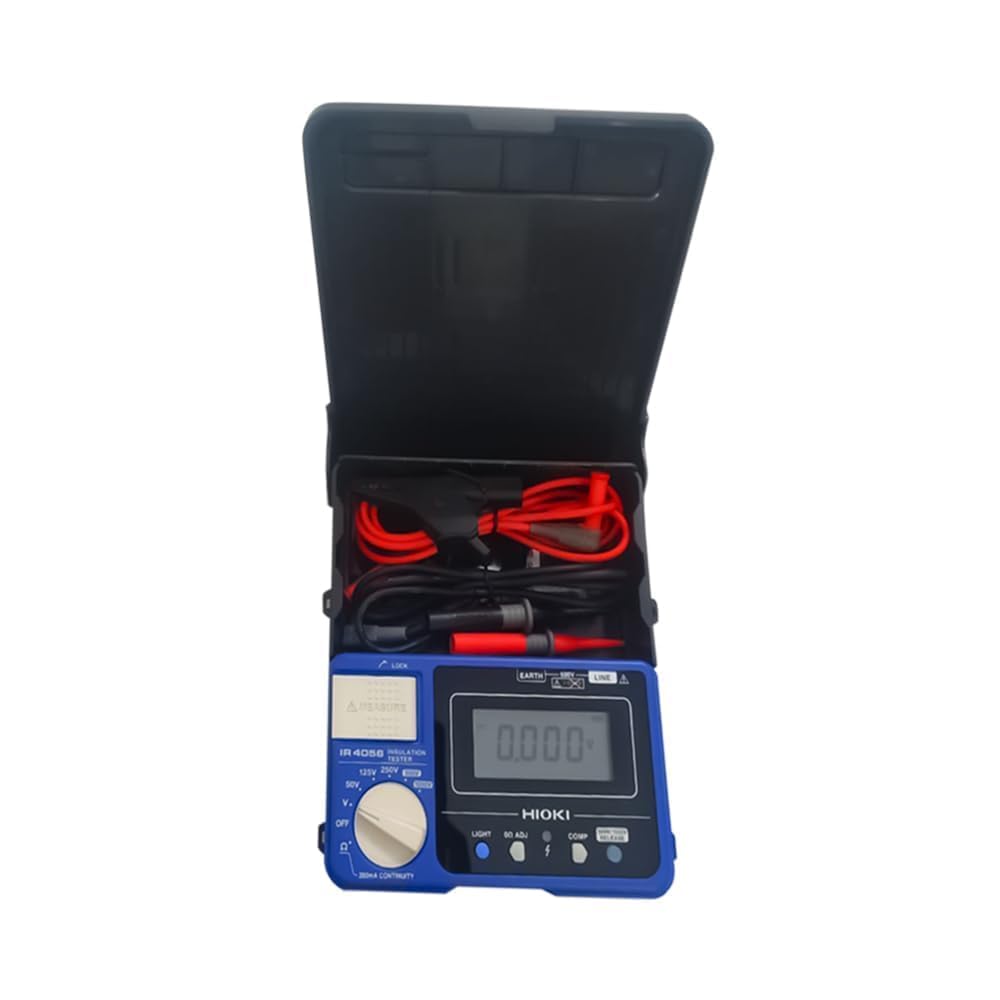

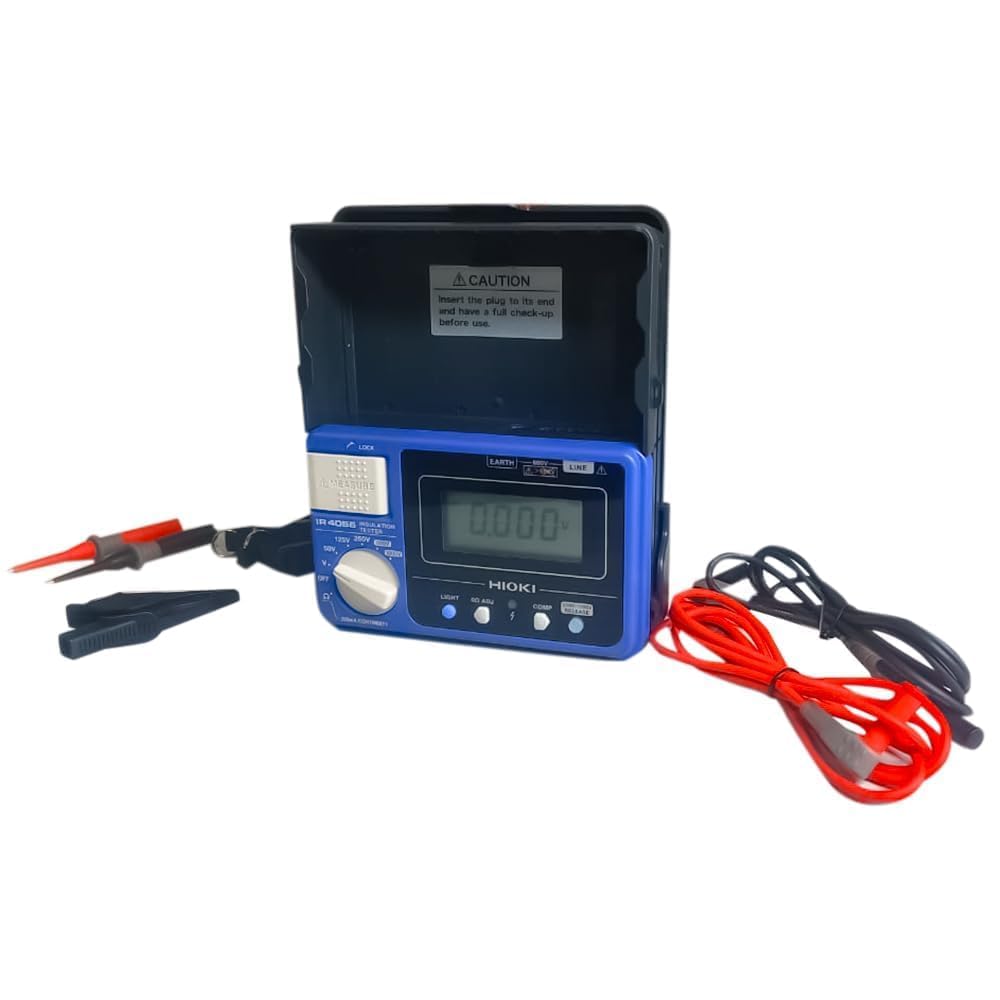

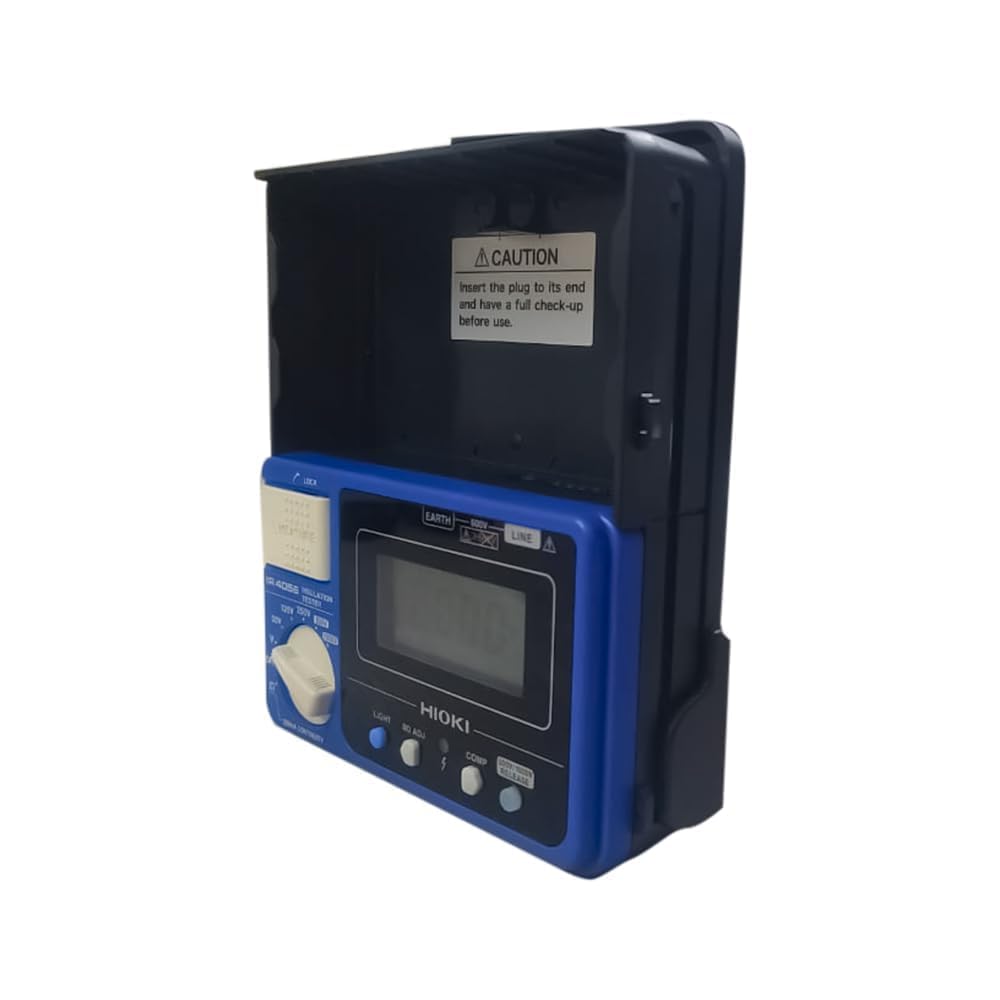

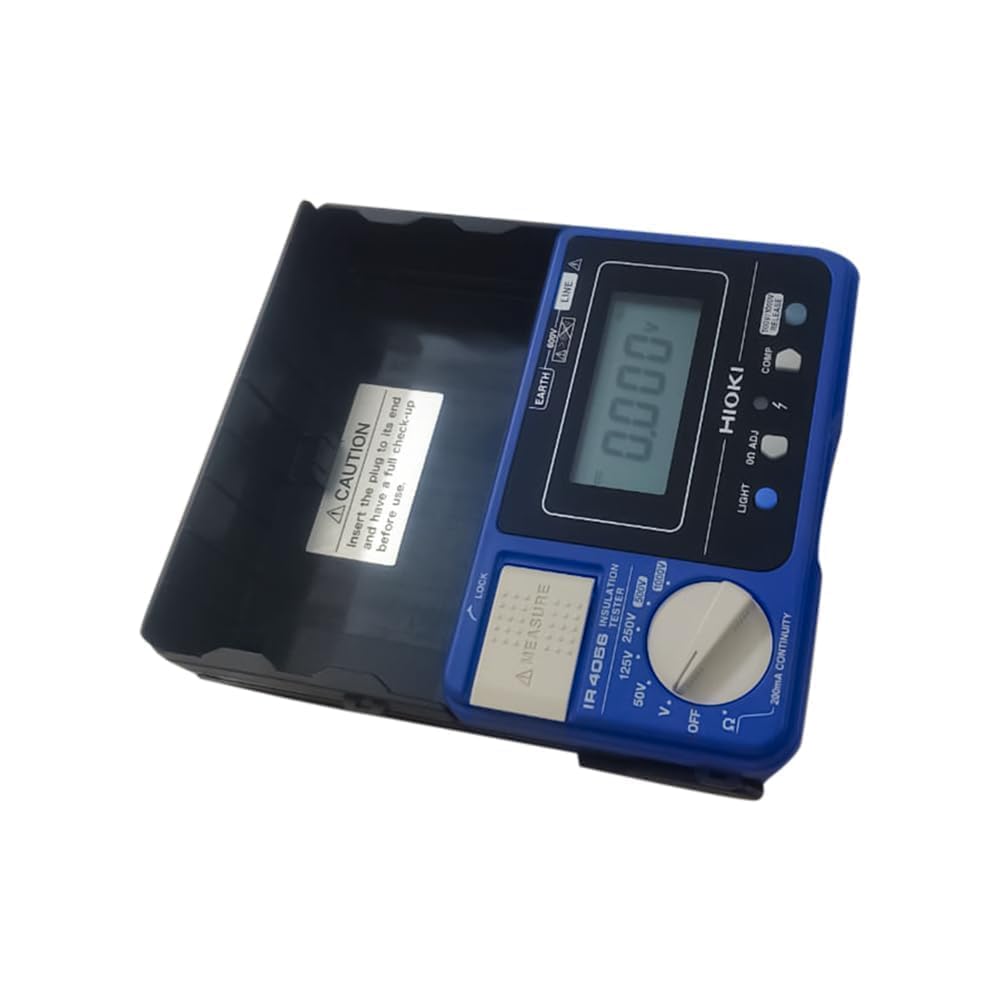

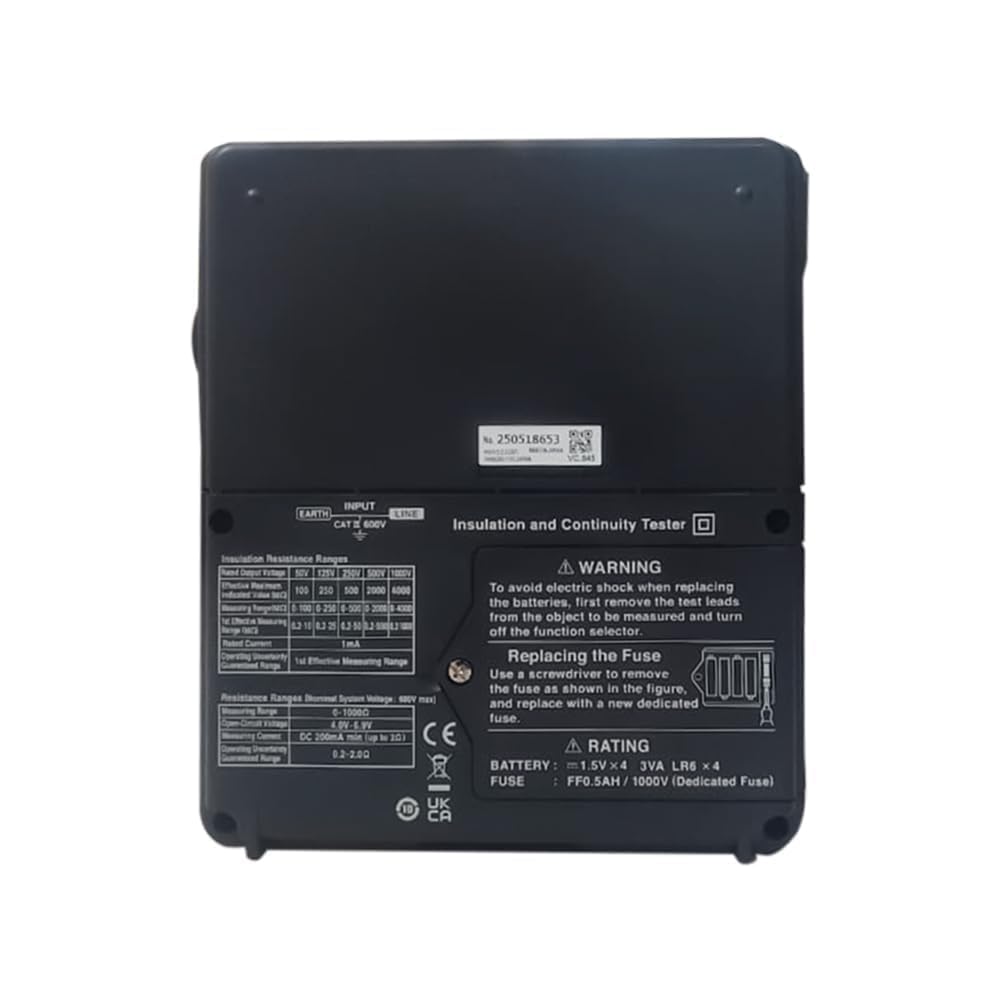

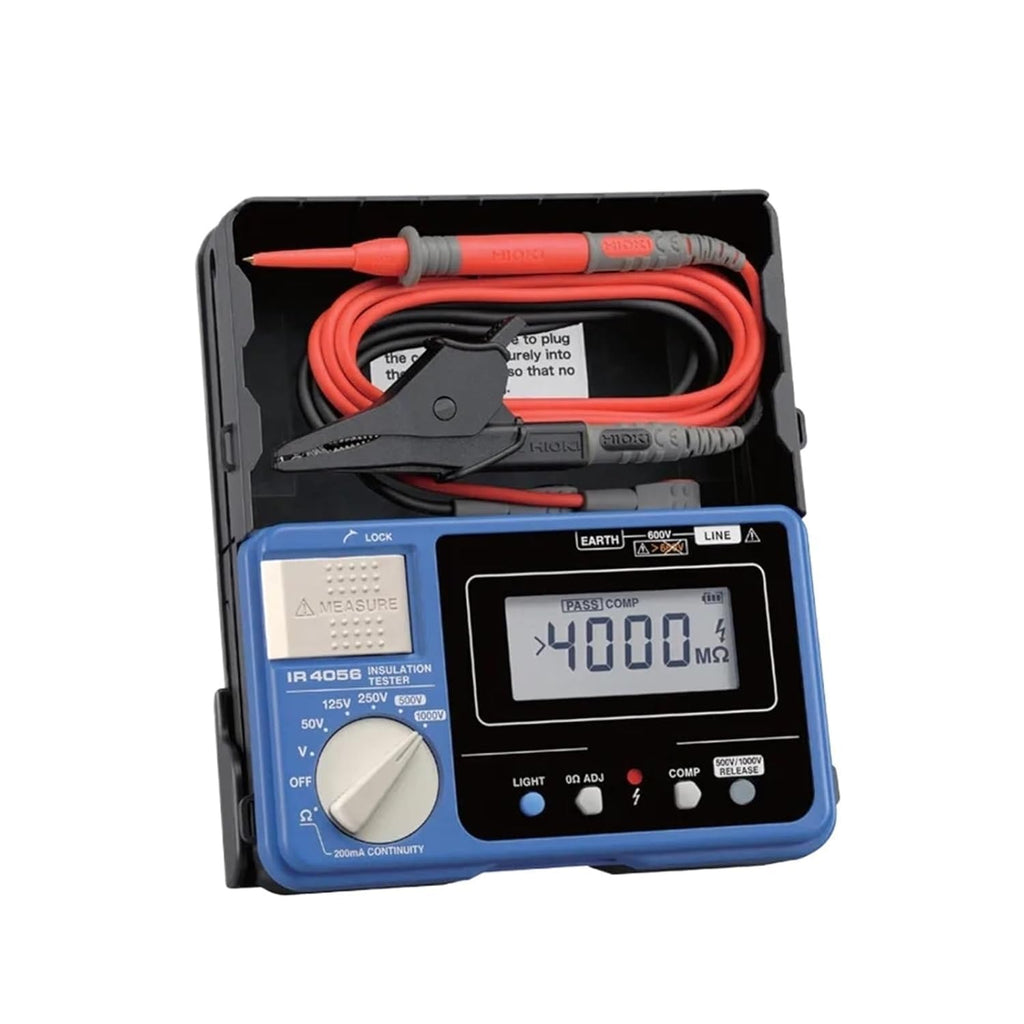

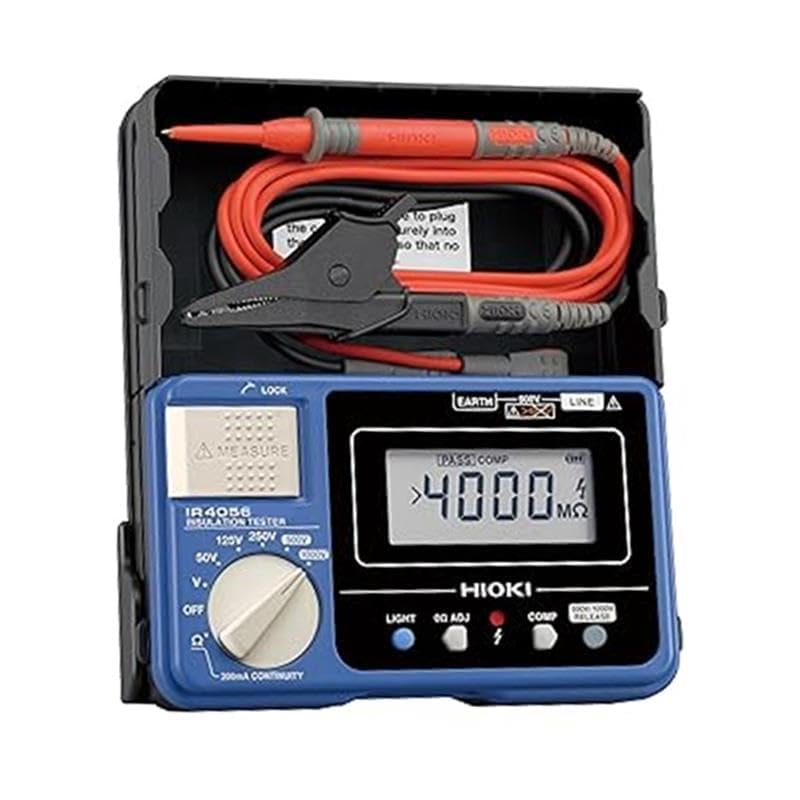

High-Voltage Insulation Resistance Tester|Resistance Meters |Insulation Tester for Manufacturing & Process Industries | Model: IR4056-20
Sale price
$74.00
Regular price $369.00
Skip to product information
High-Voltage Insulation Resistance Tester|Resistance Meters |Insulation Tester for Manufacturing & Process Industries | Model: IR4056-20
Sale price
$74.00
Regular price $369.00
- Features: Model: IR4056-20| Provides DC insulation test voltages from 50 V up to 1000 V for versatile applications| Measures up to 4000 MΩ insulation resistance | Accuracy up to ±4% (primary range) and ±8% (secondary range) under reference conditions.
- Specifications: Reference Conditions 23°C ±5°C (73°F ±9°F), 90% RH |DC voltage: 4.2 V to 600 V| Accuracy: +/-1.3 %| AC voltage: 420V/ 600V| Accuracy: +/- 2.3% | Other measuring range [MW]: 0 to 0.199| Overload protection: 600 VAC (10 s) , for 1000V :1200 VAC (10 s)
- Design built to withstand harsh industrial environments Resistance (Insulation Resistance): 50 V – up to 100 MΩ | 125 V – up to 250 MΩ | 250 V – up to 500 MΩ | 500 V – up to 2000 MΩ | 1000 V – up to 4000 MΩ
- User-friendly interface with a lar LCD Dispaly& Power Supply: Semi-Transmissive FSTN LCD with backlighting, bar-graph indicator | LR6(AA) Alkaline Batteries | Response Time: Approx. 0.8 second for PASS/ FAIL decision
- Compact and portable, making it for field testing and on-site inspections in electrical maintenance and quality control.
- Supply Scope: 1 unit of IR4056-20 product, Test leads with remote switch and Instruction Manual | Applications: Power Plants & Substations| Motor & Generator Testing| Manufacturing & Process Industries| HVAC Systems.
- Digital multimeter Hioki IR4056-20 professional handheld tester with true RMS auto-ranging and CAT III CAT IV safety ratings measures voltage current resistance continuity and diode functions with backlight display ideal for electricians home workshop electronics repair maintenance and industrial use affordable and reliable for professional and hobbyist applications
