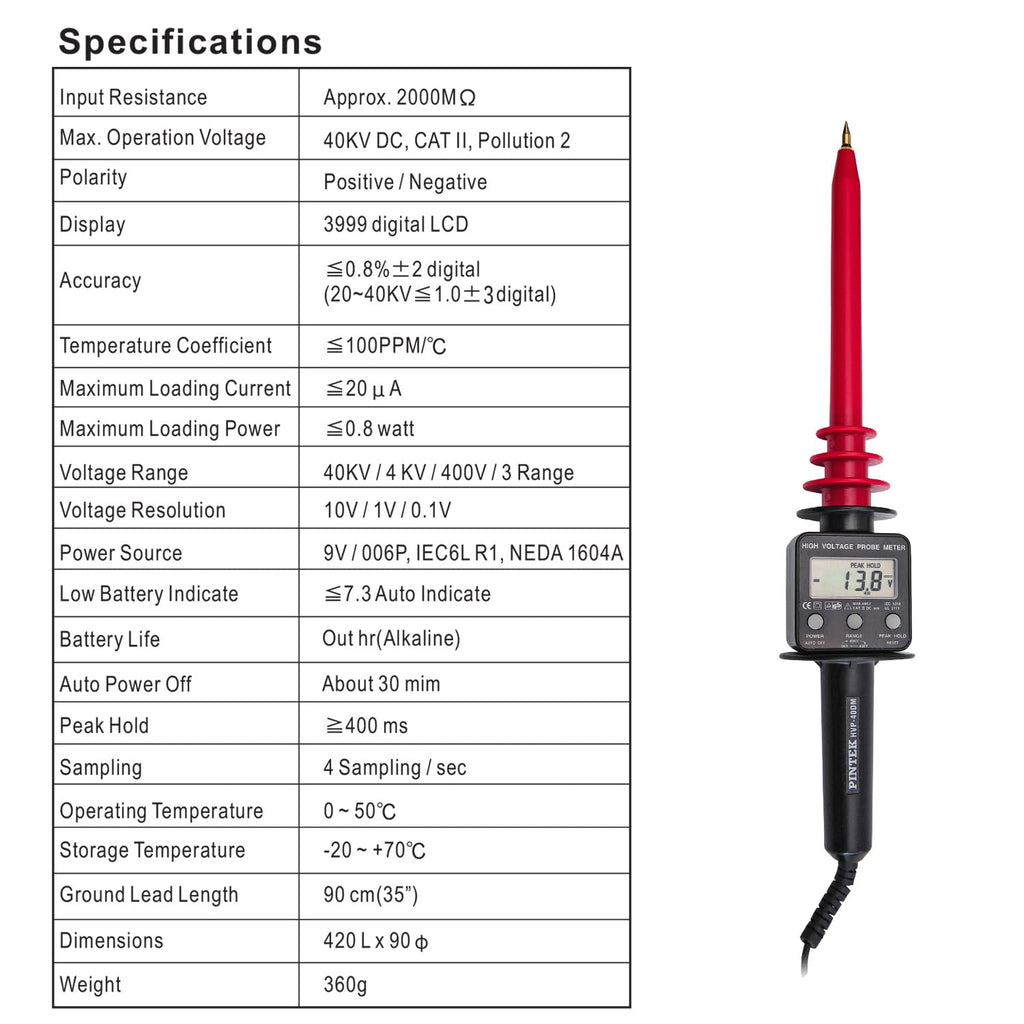

  • DC HIGH VOLTAGE RANGE: Measures up to 40 kV DC across 400 V, 4 kV and 40 kV ranges with respective resolutions of 0.1 V, 1 V and 10 V.
  • MEASUREMENT ACCURACY: Accuracy is +/-(1.0% of reading + 2 digits), with a temperature coefficient of 100 ppm/C.
  • HIGH INPUT IMPEDANCE: Provides 2000 MOhm input impedance to reduce loading during high-voltage electrical measurements.

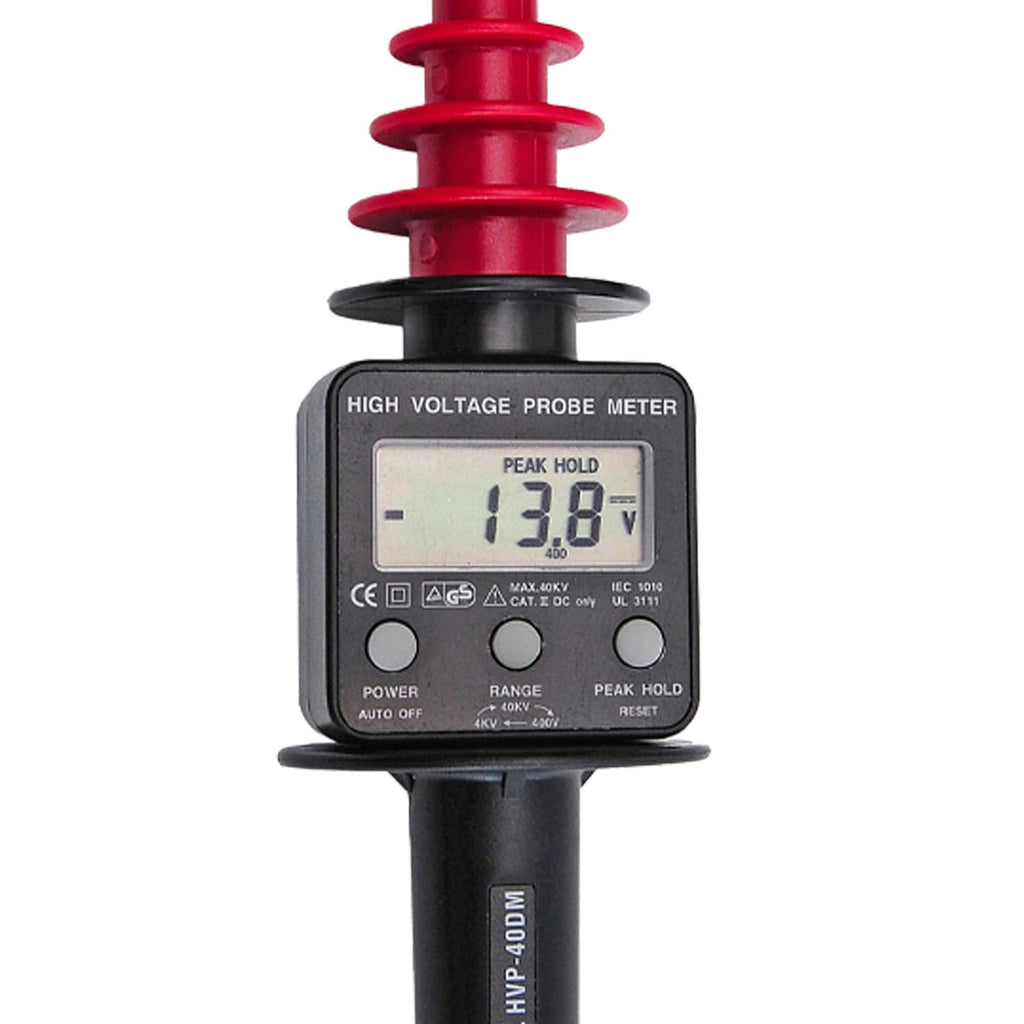

  • LCD AND HOLD FUNCTION: The 3999-count LCD displays measurement results, while Peak Hold retains a detected peak value for review.

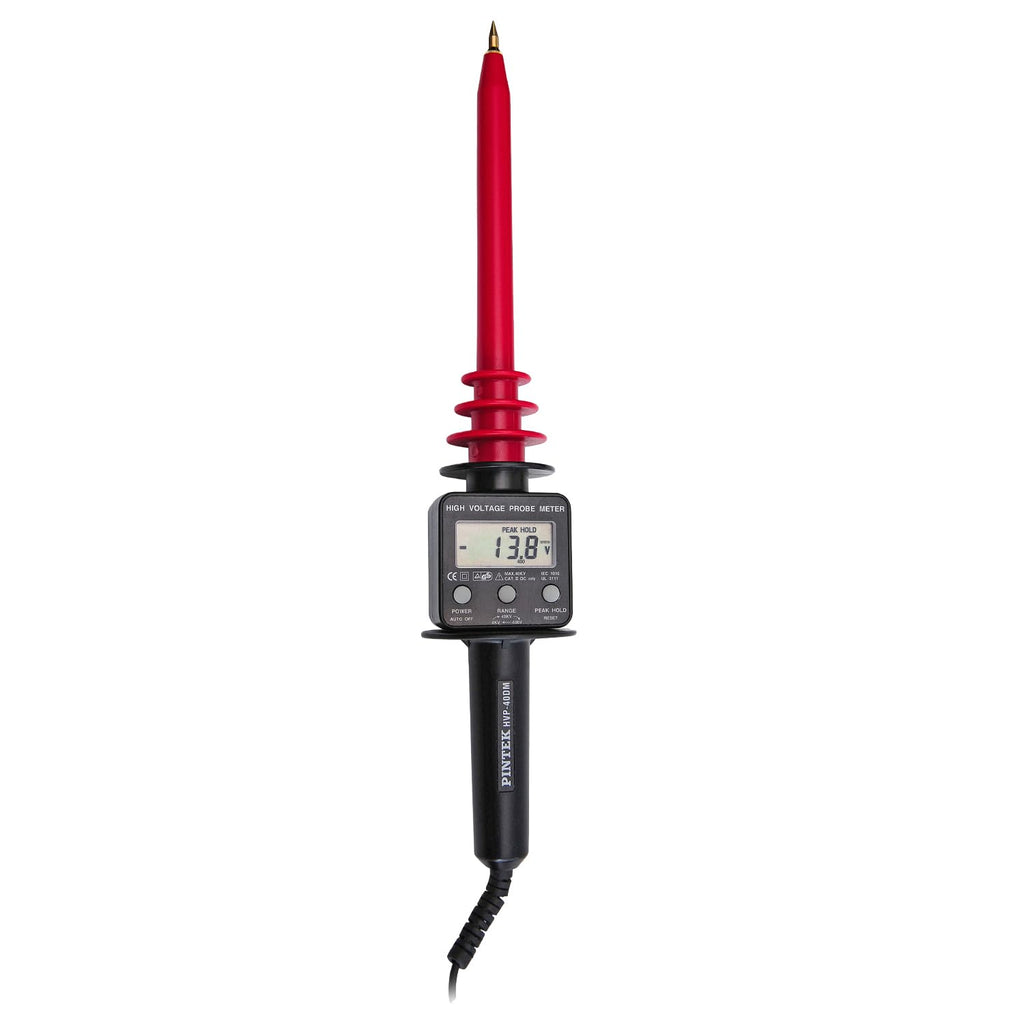

  • BATTERY OPERATION: Powered by one 9 V battery and includes automatic power-off; probe measures approximately 420 x 80 mm and weighs 360 g.
