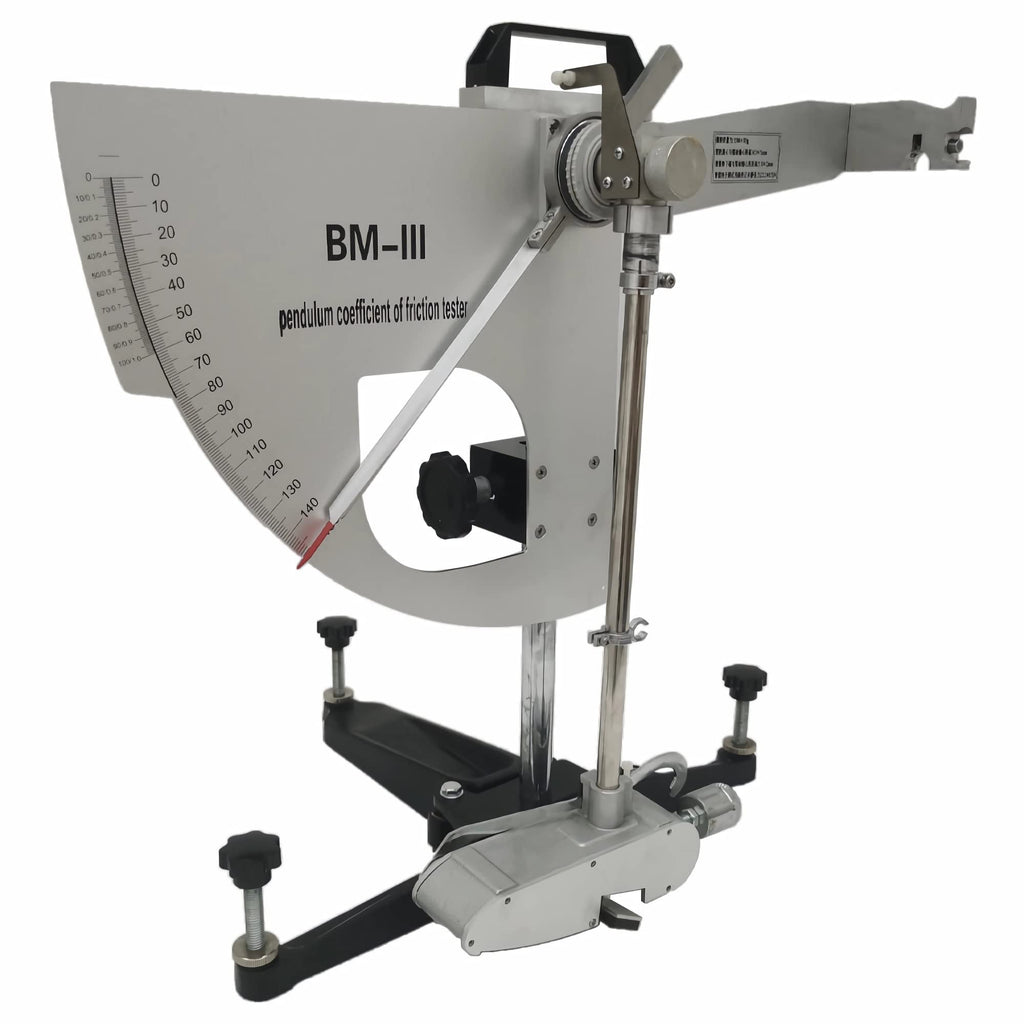

INTSUPERMAI Portable Pendulum Skid Resistance Tester, Pendulum Friction Tester, Road Friction Coefficient Measuring Instrument, Pendulum Testing Tool for Slip Resistance
Sale price
$120.00
Regular price $599.00
Skip to product information
INTSUPERMAI Portable Pendulum Skid Resistance Tester, Pendulum Friction Tester, Road Friction Coefficient Measuring Instrument, Pendulum Testing Tool for Slip Resistance
Sale price
$120.00
Regular price $599.00

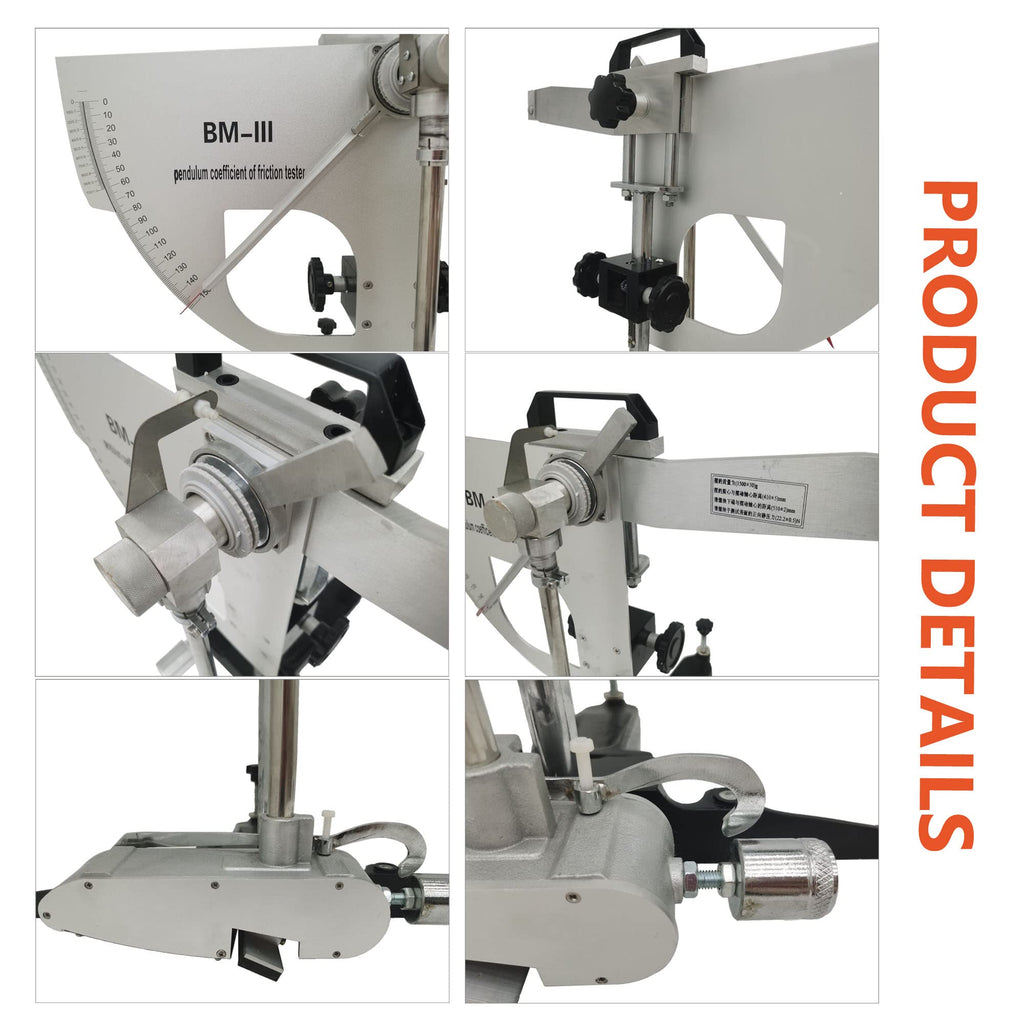

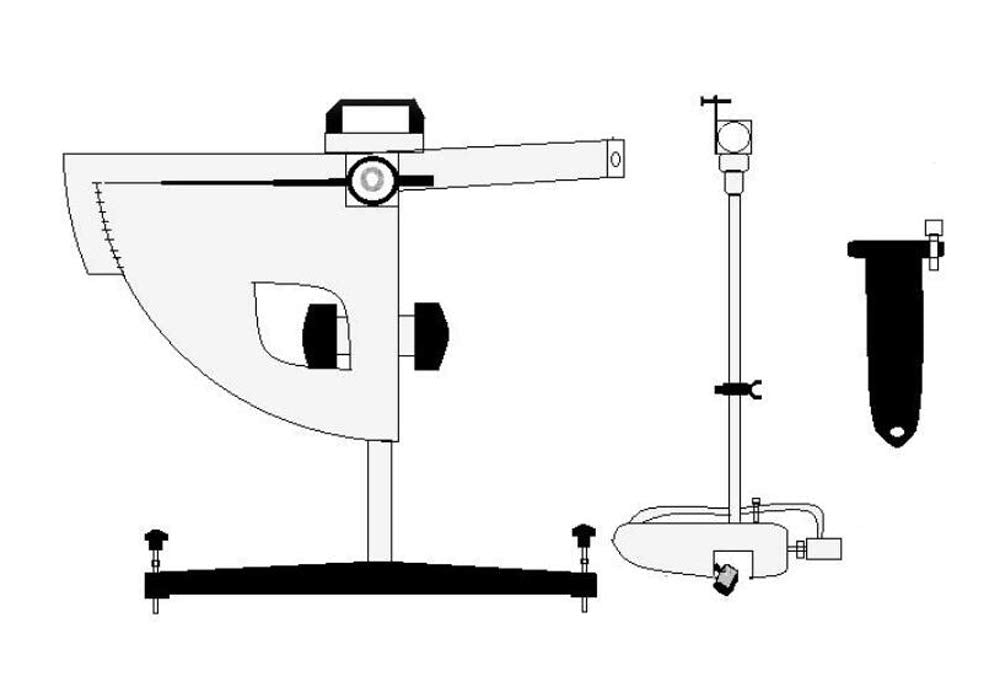

- 【BASE】 This portable skid resistance tester it is composed of T-leg, leveling wire and leveling bubble, which can level and support the instrument. [Column] it iscomposed of column, lifting mechanism, guide rod and instrument handle, used for lifting and fixing the position of swing head.
- 【RELEASE SWITCH】 A switch installed on the cantilever to maintain the horizontal position of the swing rod and release the effect of the pendulum falling.
- 【STEERING SYSTEM】 This pendulum tester includes fastening handle, swing shaft, steering knuckle and bearing, connecting pendulum and fixing position to ensure free swing in swing plane.

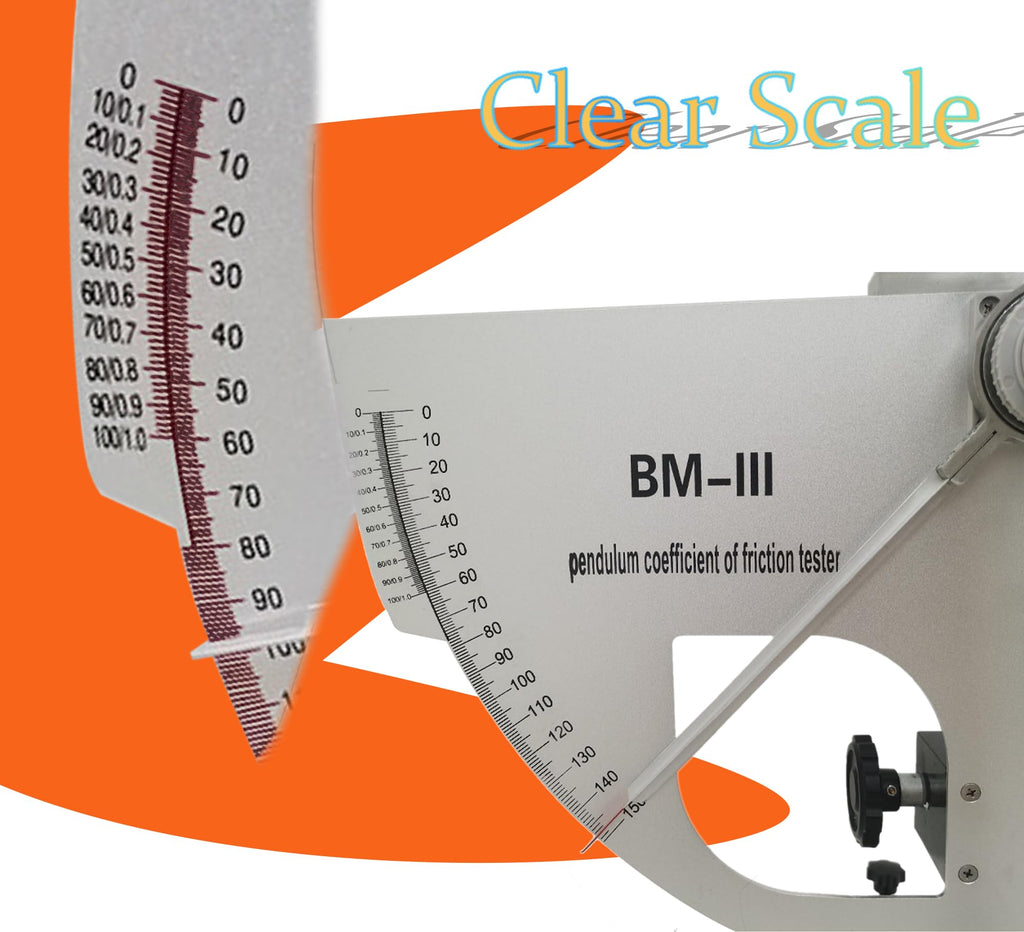

- 【INDICATOR SYSTEM】 Including pointer felt ring, pressing cover, pointer adjusting nut and dial. The pointer can directly indicate the swing value.

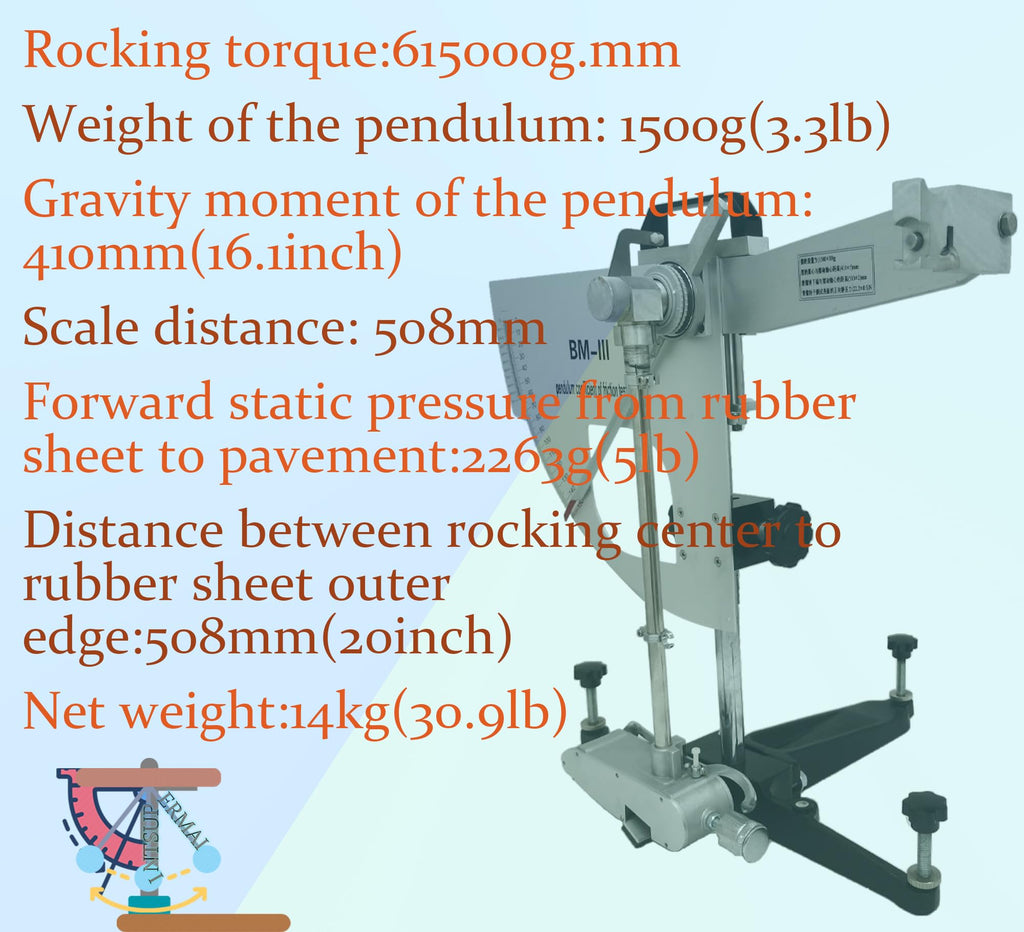

- 【SWINGING HEAD】 This pendulum testing tool is composed of upper and lower joints, swinging rod, spring, lever, lifting handle, hammer shell, sliding block and rubber sheet (76mm*25.4mm*6.35mm). It has specified moment for swinging center and specified pressure for road surface. The moment balance between front and back, left and right is the measure of road friction coefficient.
- 【TEST ROAD SURFACE】 It should be ensured that it contains a flat surface with a length greater than 150mm and a width greater than 100mm to avoid affecting the measured values.
- 【EFFECTIVE RANGE】 Within the effective range of sliding of the rubber plate, there should be no obvious concave convex surfaces.
- 【TEST POINTS】On the test section, select five representative test points along the left wheelbase in the direction of travel, with each test point spaced approximately 5-10m apart.
