INTSUPERMAI Withstand Hi-Pot Tester Insulation Resistance Tester AC/DC 100VA 5KV Test Instruments with Memory Group Digital Display
Sale price
$92.00
Regular price $460.00
Skip to product information
INTSUPERMAI Withstand Hi-Pot Tester Insulation Resistance Tester AC/DC 100VA 5KV Test Instruments with Memory Group Digital Display
Sale price
$92.00
Regular price $460.00
- SPECIFICATION:This is for 5 KV AC and DC test. Model:RK2672AM; Test Voltage (AC):0~5 KV +/-5 %; Test Voltage (DC):0~5 KV +/-5 %; Leakage Current (AC):0~2/20 mA +/-5 %; Leakage Current (DC):0~2/10 mA +/-5 %; Timing (s):0~99 s; Manual control; Pmax:100 VA; Input Voltage(Power):110 V; Weight:24 lbs.Operating request: Environmental temperature 0~40 ℃ & Relative dumidity≤75 %.The two test lines A and B will be delivered randomly
- WIDE APPLICATION:RK267 series voltage withstand test instruments are for general- purpose HV test operation, It can be widely used for voltage withstand test in electrician’s assistant instrument,rubber-wooden facility,voltage convertor,wires , power meter, motor, power supply plug, cables and all kinds of electronic and electric products
- RELIABILITY:Use three-hole power supply plug and insure GND connection well. The output voltage is output through the regulator, featuring high reliability and high durability
- POPULARITY:As the launch of the national security standard, Voltage withstand instrument has become one of necessary withstand test instruments to the radio and electronic products manufacturer

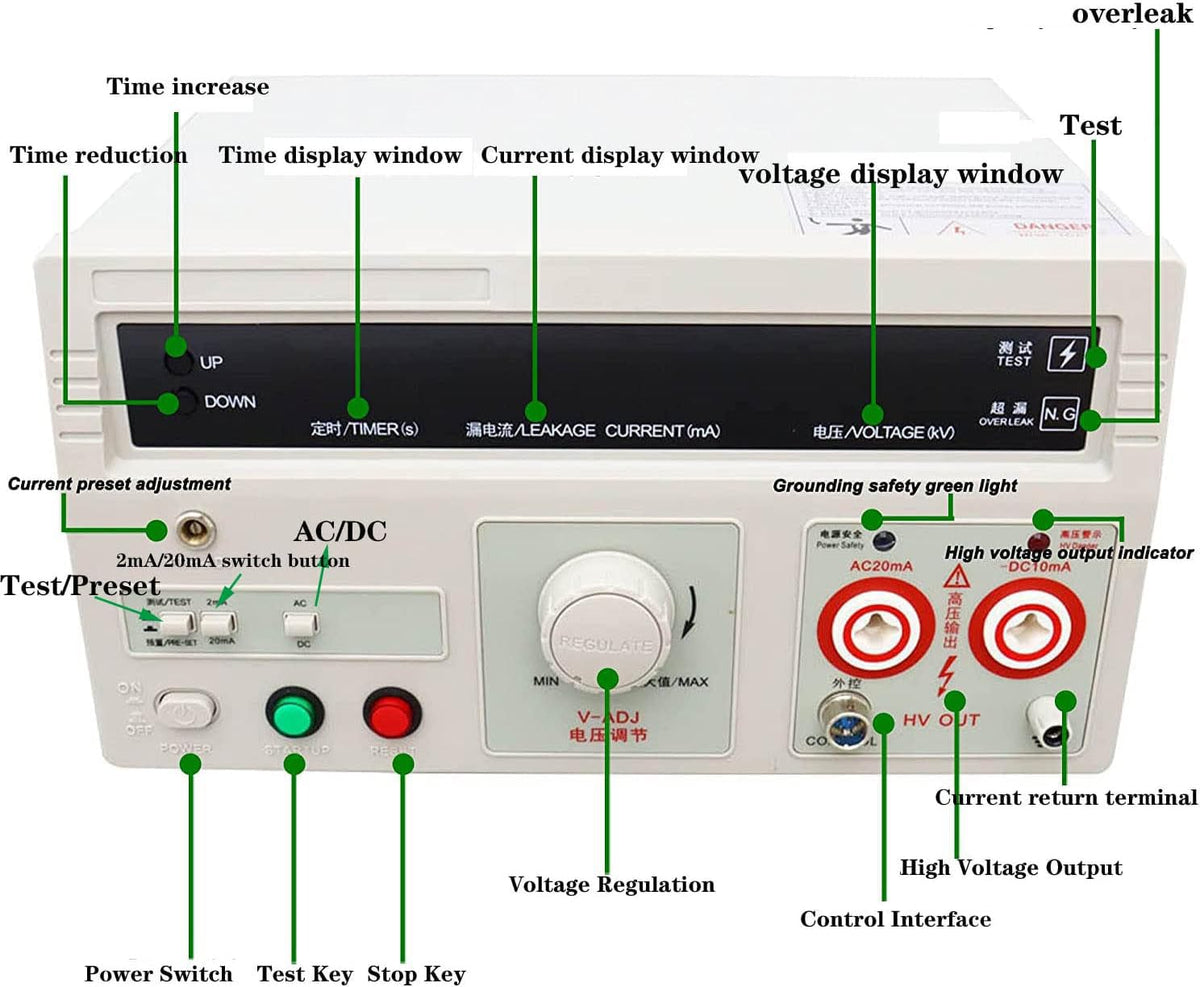

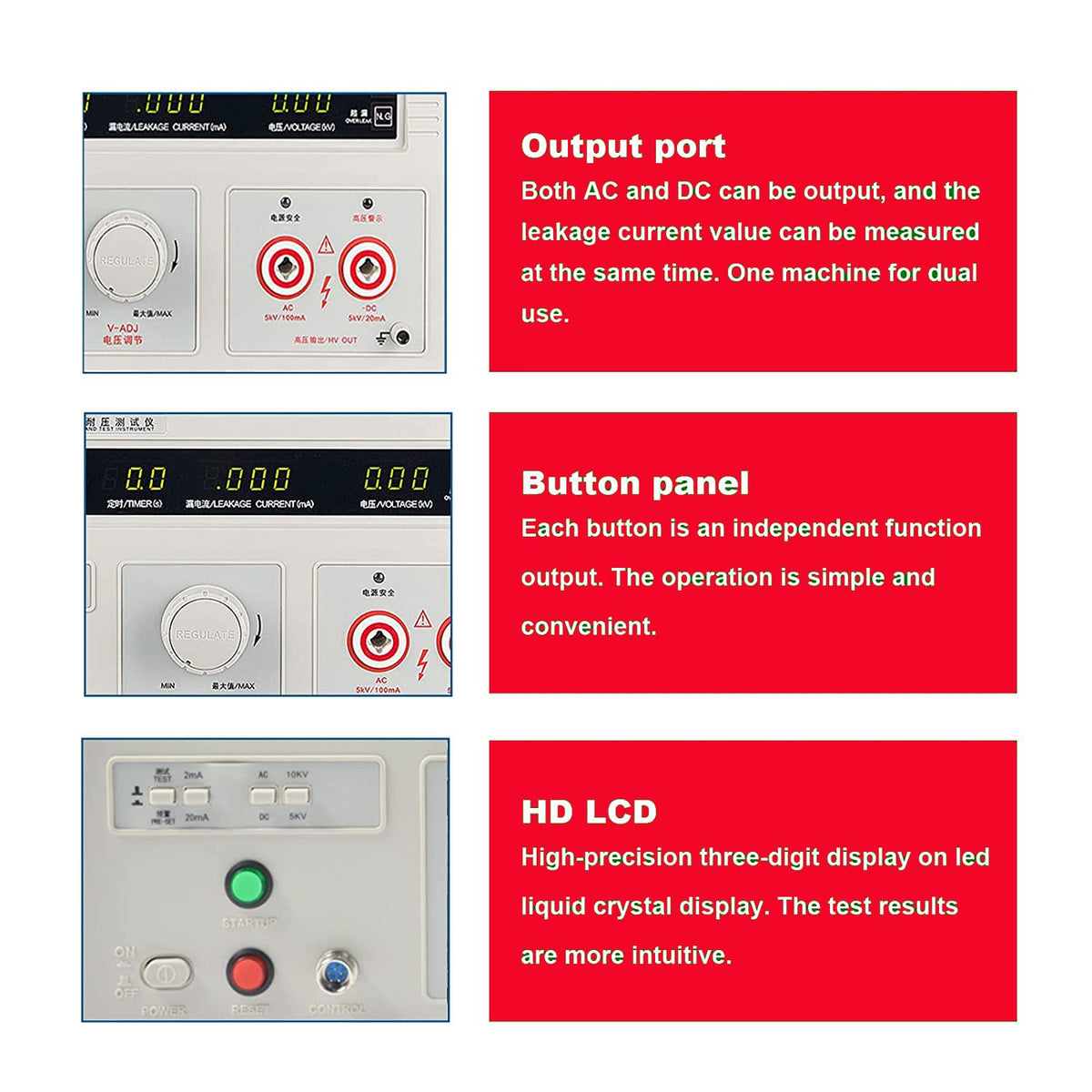

- CONVENIENT TO USE:Using high-brightness LED digital tube to display test time, voltage, current, real-time display of breakdown current value and voltage value.Alarm current value can be continuously preset.Test time is measured by three digits
- PACKAGE INCLUDED:1×Withstand voltage test equipment; 1×High voltage test bar; 1× control test bar; 1×Ground wire; 1×power cord.Complete accessories, more convenient to use
