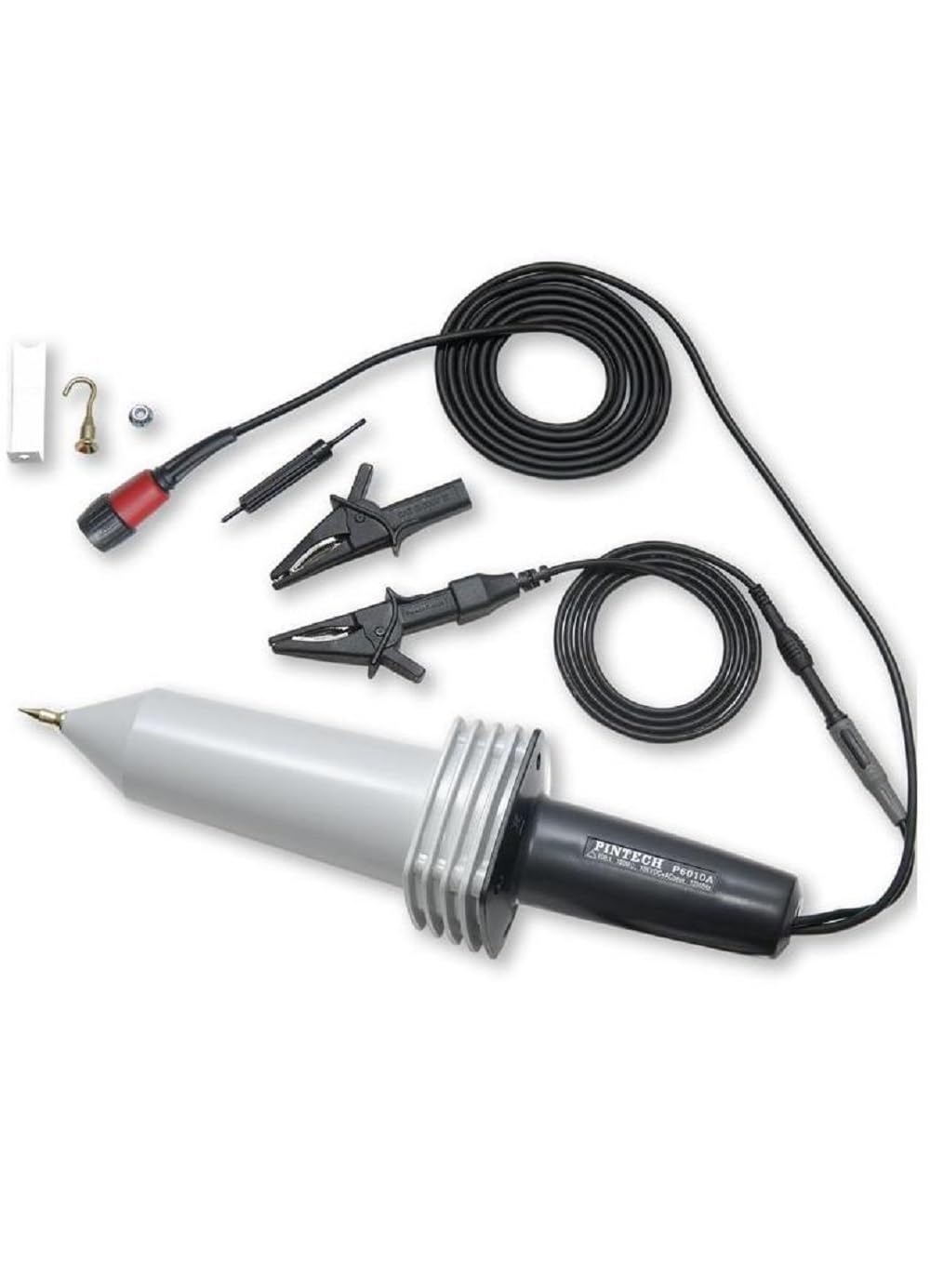

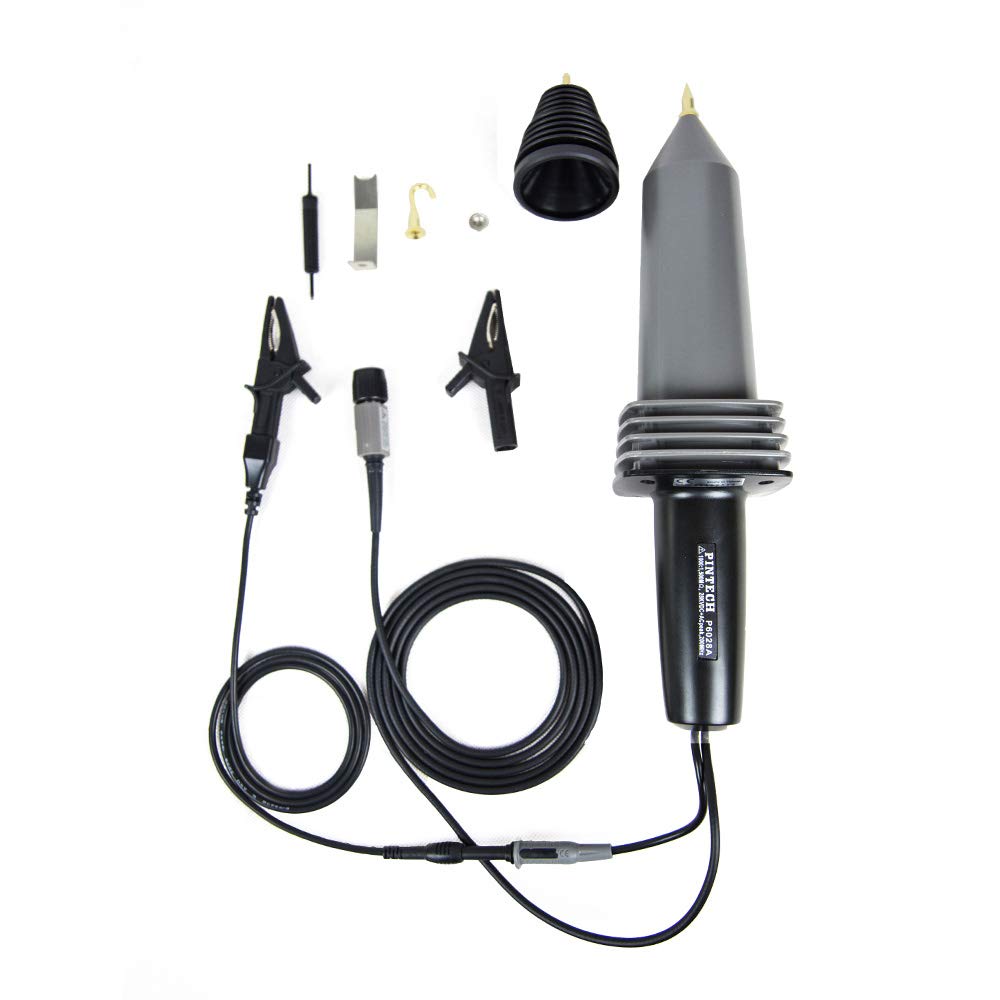

PINTECH High Voltage Probe 1000:1 Oscilloscope Probe 40MHz
P6028A
Sale price
$200.00
Regular price $1,079.00
Skip to product information
PINTECH High Voltage Probe 1000:1 Oscilloscope Probe 40MHz
Sale price
$200.00
Regular price $1,079.00

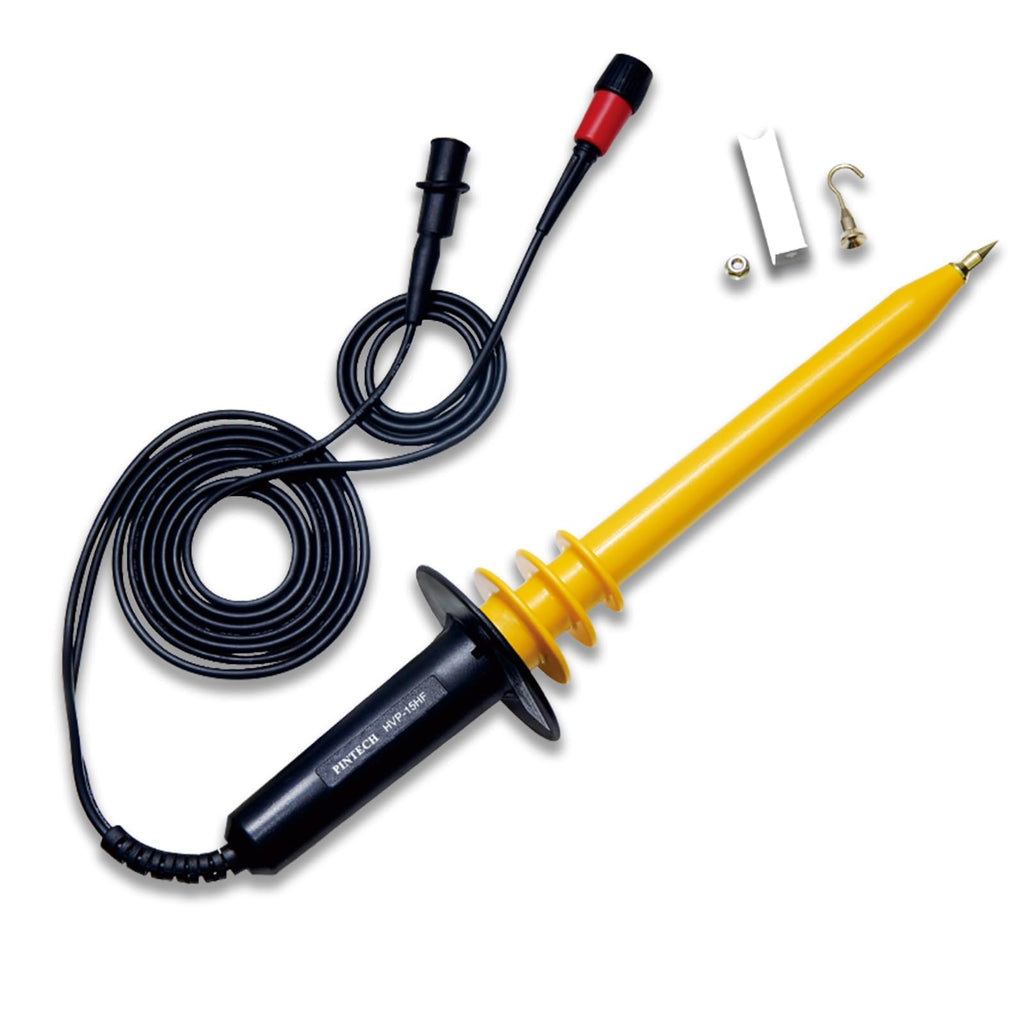

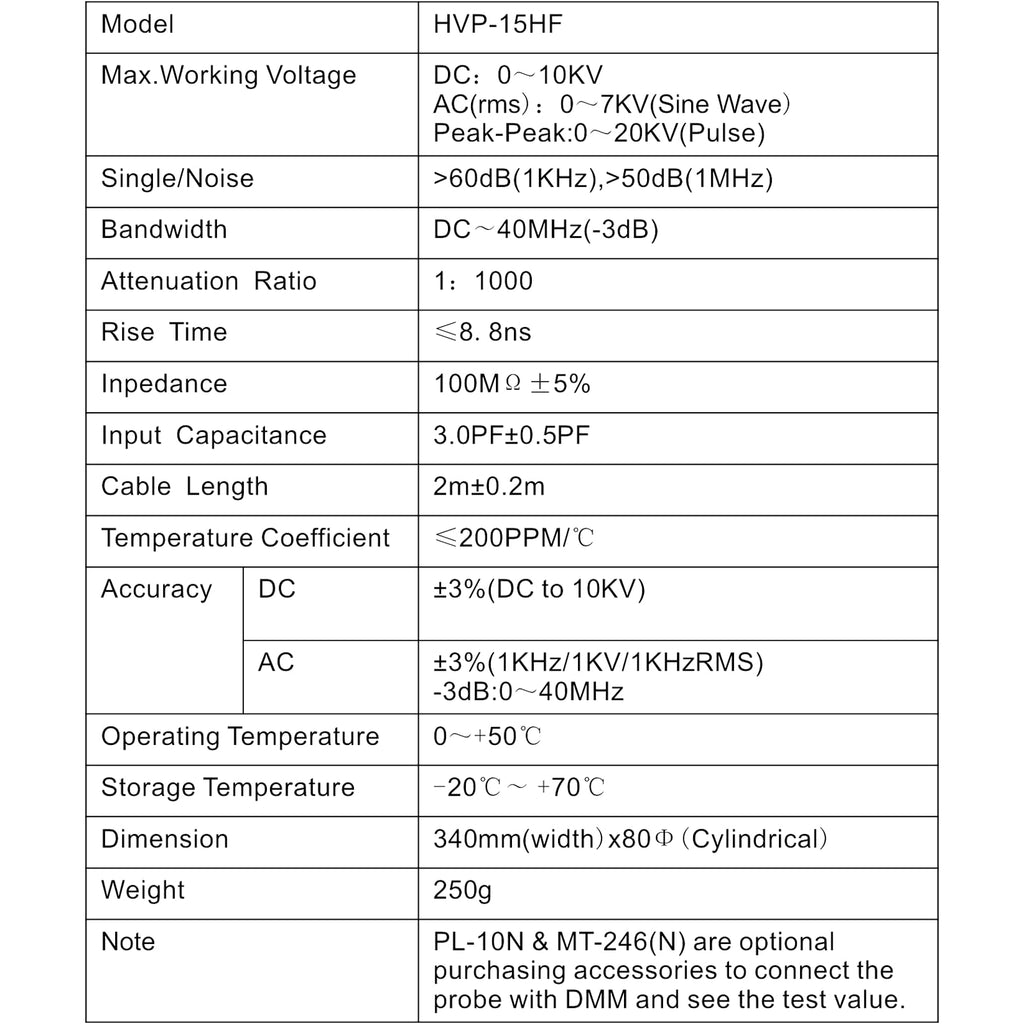

- Test Range: PINTECH HVP-15HF high voltage probe measure current up to 10kV DC/20kV AC, for testing high voltage signals.
- Accuracy DC：±3%(DC to 10kV); AC: ±3%(1kHz/1kV/1kHzrms), -3dB：0-40MHz.

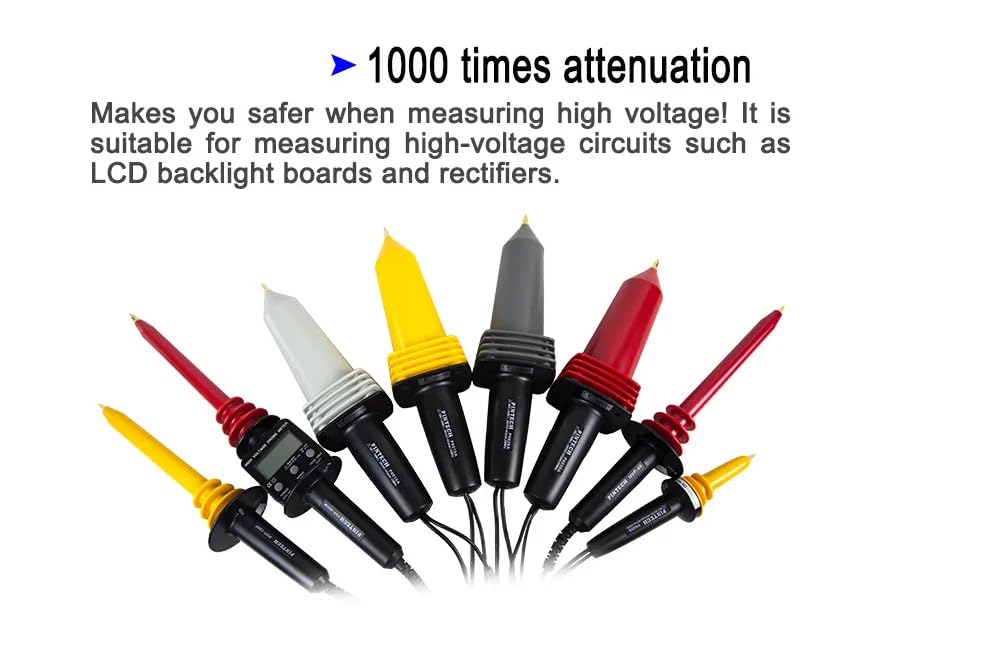

- Attenuation Rate: 1000:1, the oscilloscope probe make your test safe.

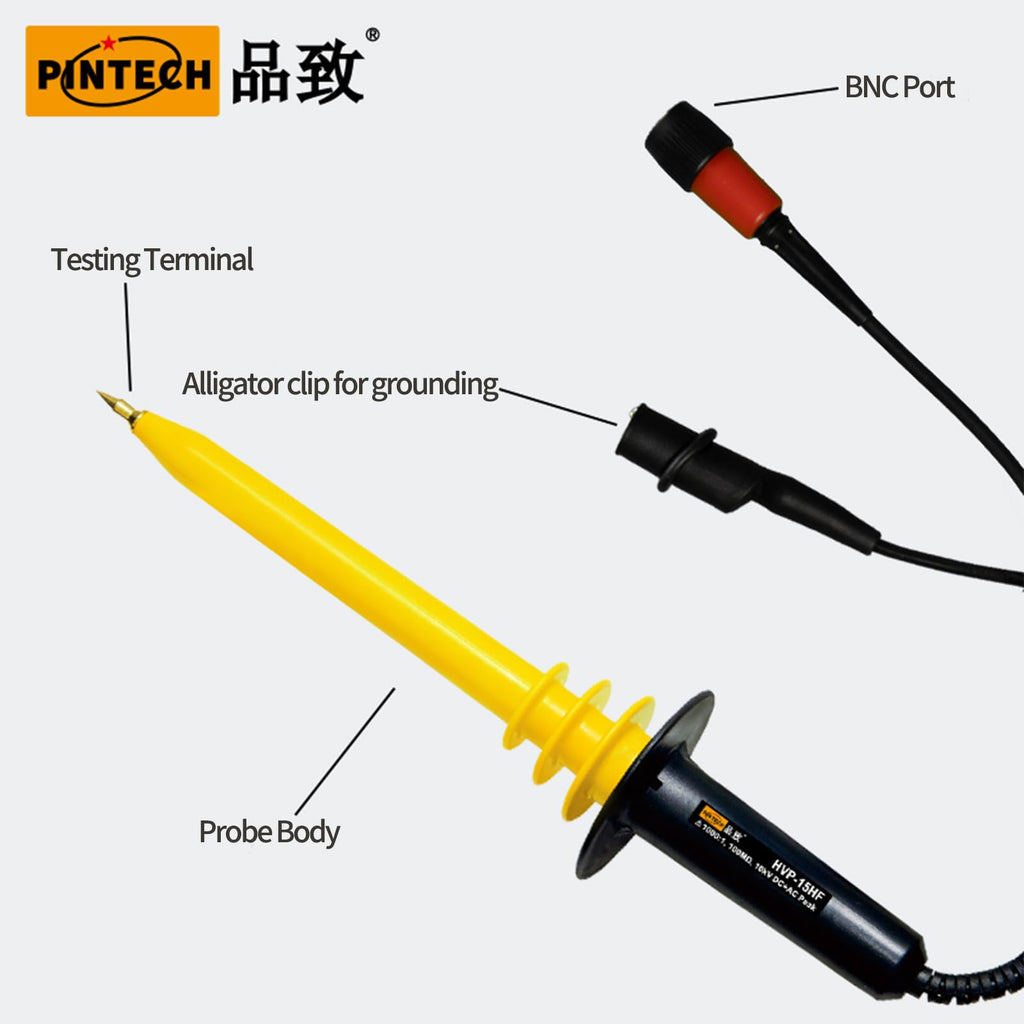

- Widely Used: The probe features with standard BNC interface, compatible with all oscilloscopes.
- 100MΩ±5% input impedance. The high voltage probe is small and exquisite, easy to carry and use.
