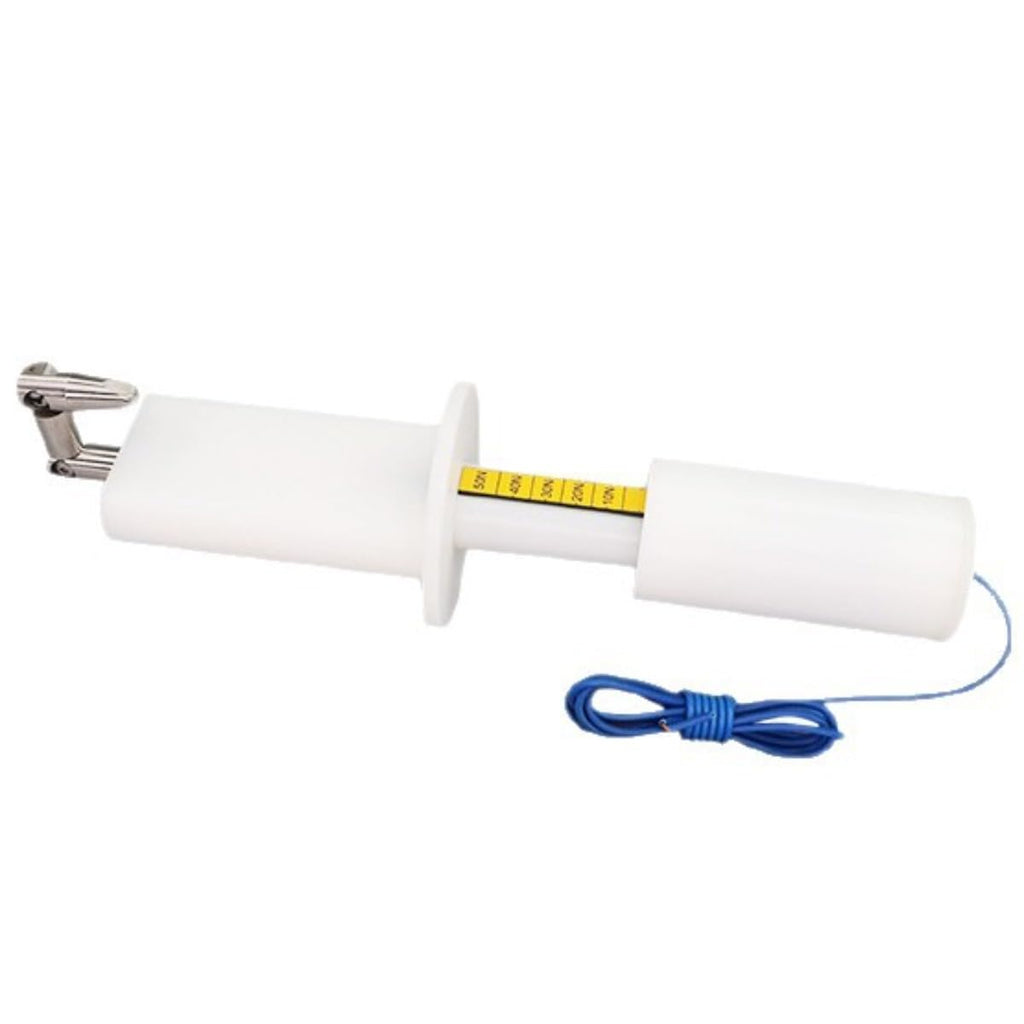

The IP2X Thrust Test Finger (Also Called an Electric Shock Protection Test Finger) is A Safety Testing Tool Used to Test The Protection Rating of Electrical Equipment Enclosures.
Sale price
$60.00
Regular price $299.00
Skip to product information
The IP2X Thrust Test Finger (Also Called an Electric Shock Protection Test Finger) is A Safety Testing Tool Used to Test The Protection Rating of Electrical Equipment Enclosures.
Sale price
$60.00
Regular price $299.00

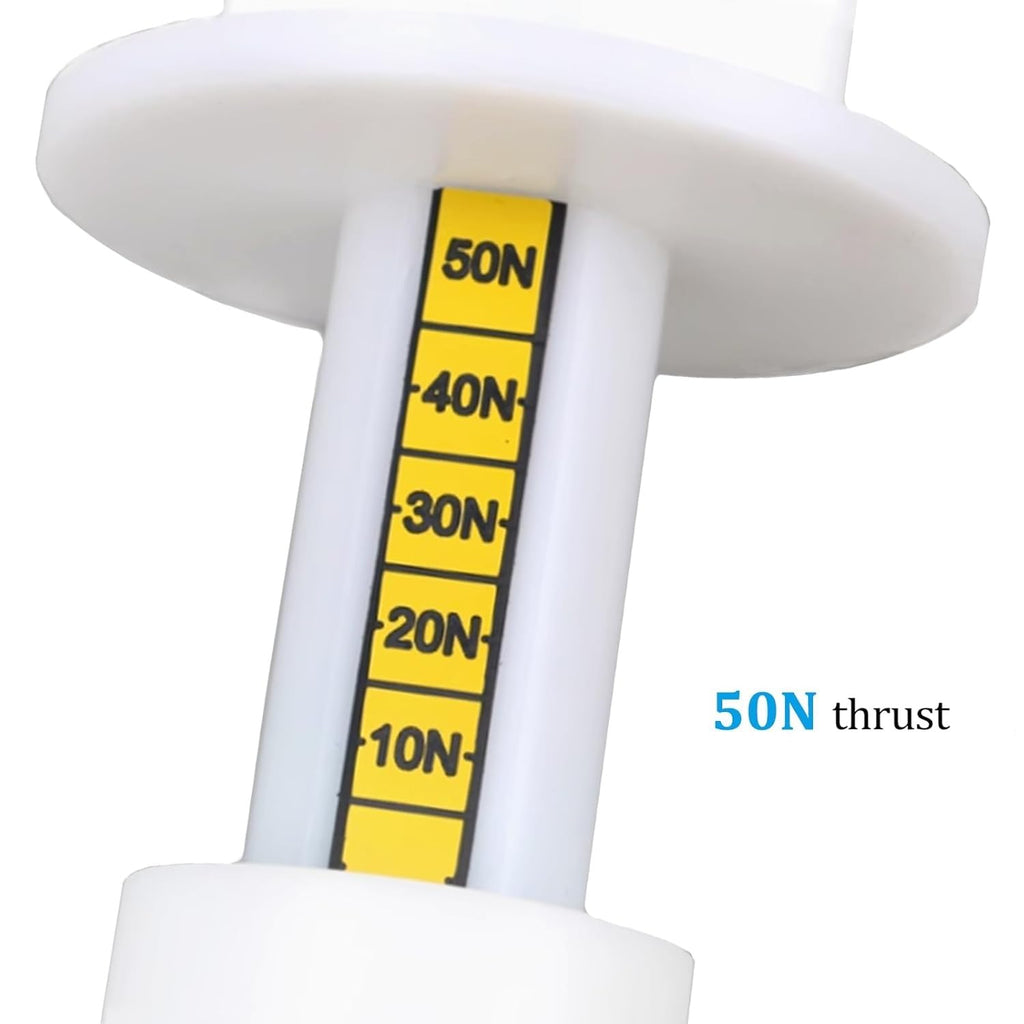

- IP2x (with thrust): The IP2X thrust test finger (also called an electric shock protection test finger) is a safety testing tool used to test the protection rating of electrical equipment enclosures.
- Double-jointed hinge design: The test finger typically consists of three sections with two joints, allowing it to bend 90° ± 10°. This design simulates the dexterity of a finger, used to inspect complex structures such as gaps and opening edges, ensuring access to all angles when a thrust is applied.
- Core function: Verifies whether the equipment enclosure prevents fingers from touching dangerous live internal components. By simulating the size and thrust of an adult finger, it checks the safety of openings in products such as sockets, appliances, and lighting fixtures.

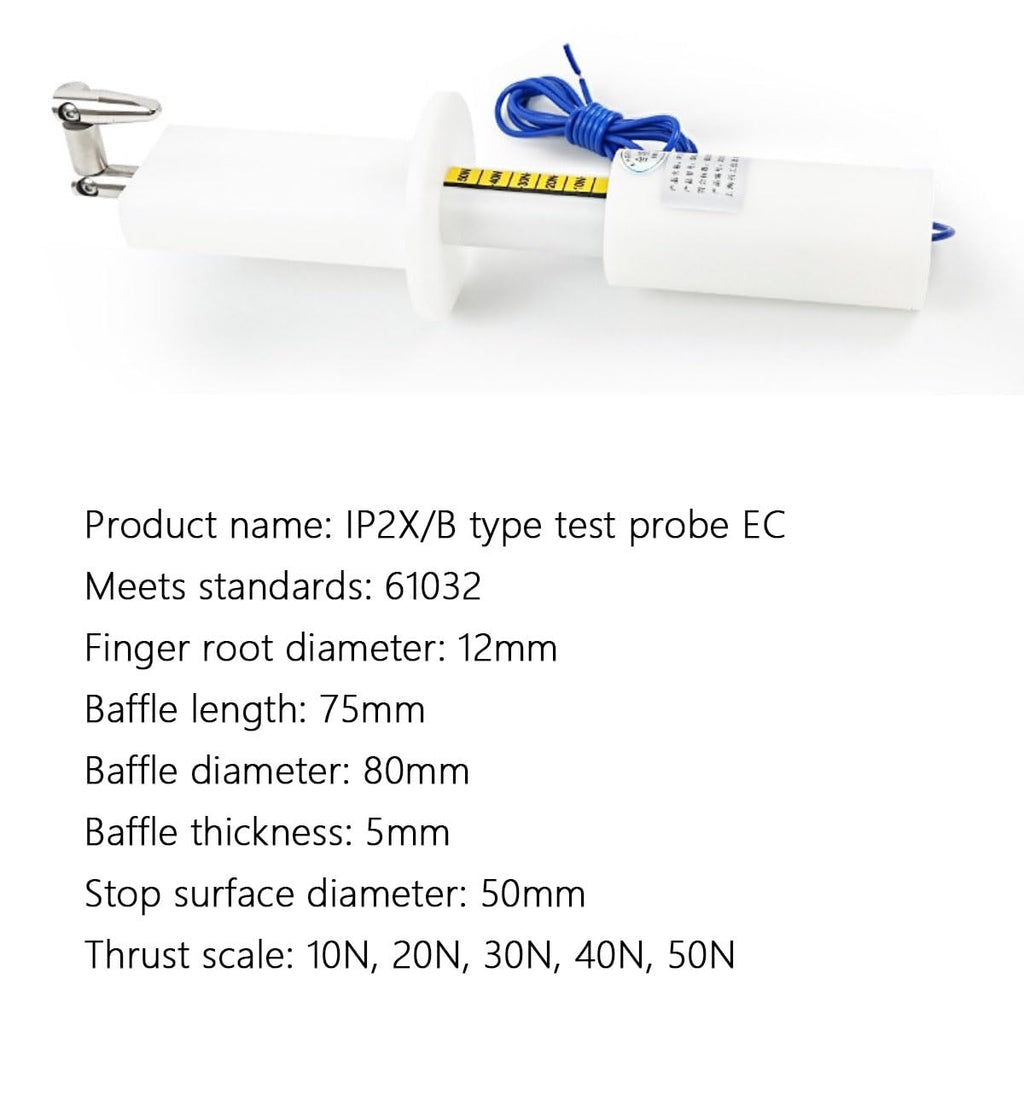

- Jointed finger diameter: Φ12 mm (strictly simulates finger thickness).
- Finger length: 80 mm (simulates finger insertion depth).
- Baffle: 50 mm in diameter, used to prevent the test finger from inserting too deeply.
