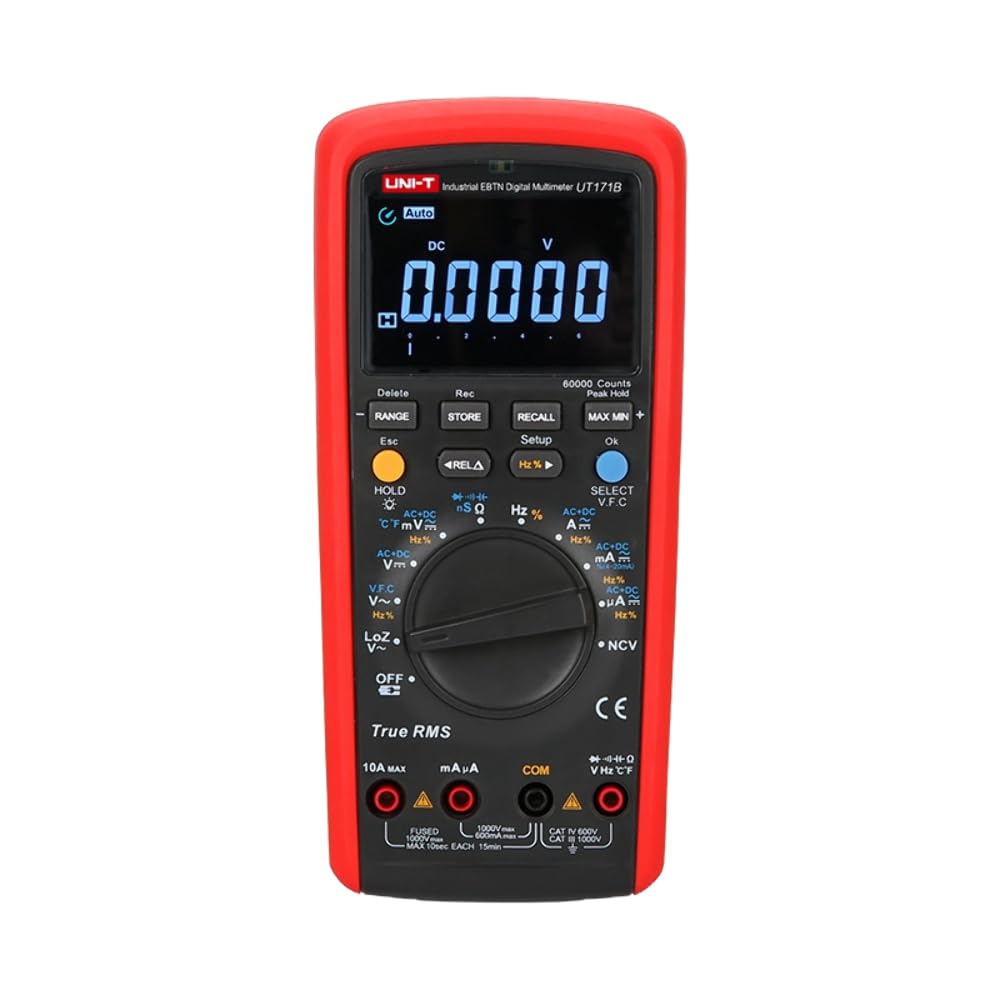

UNI-T UT171B Industrial True RMS Digital Multimeter AC+DC Measurement USB/Bluetooth
Sale price
$83.00
Regular price $414.00
Skip to product information
UNI-T UT171B Industrial True RMS Digital Multimeter AC+DC Measurement USB/Bluetooth
Sale price
$83.00
Regular price $414.00
- 1. AC+DC measurement 2. Peak hold 3. Rechargeable battery 4. VFC low-pass filtering 5. USB/Bluetooth communication
- DC voltage (V)1000V±(0.025%+5) AC voltage (V)1000V±(0.4%+40) DC current (A)10A±(0.15%＋2) AC current (A)10A±(0.75%＋5) Resistance (Ω)60MΩ±(0.05%＋2)
- Admittance (nS)60nS±(1%＋10) Capacitance (F)60mF±(2.5%+40) Frequency (Hz)10Hz~10MHz±(0.01%+5) Temperature (°C) -40°C~1000°C±(1%+30) Temperature (°F) -40°F~1832°F±(1.5%+50)
- Display count 60000 Auto/Manual range √ True RMS √ Bandwidth (Hz)100kHz√ 4~20mA loop0~100%√ LoZ (ACV)Around 3kΩ√ DiodeAround 3V√ Continuity buzzer √ Duty cycle0.1%~99.9%√
- NCV/Data hold/MAX/MIN √ Relative mode √ Data storage 9999 Display type EBTN Analog bar graph 31 LCD backlight √ Mis-plug alarm √ Low battery indication √ Auto power off √ Input protection √ Input impedance for DCV √ Input impedance for DCVAround 1GΩ√
- Power7.4V 2000mAh Li-ion battery Display70.6mm x 35.3mm Product colorRed and grey Product net weight384g Product size206mm x 95mm x 55mm Standard accessoriesBatteries, test leads, point contact temperature probe, USB interface cable, power adaptor, PC software CD Standard individual packingGift box, carrying bag, English manual
