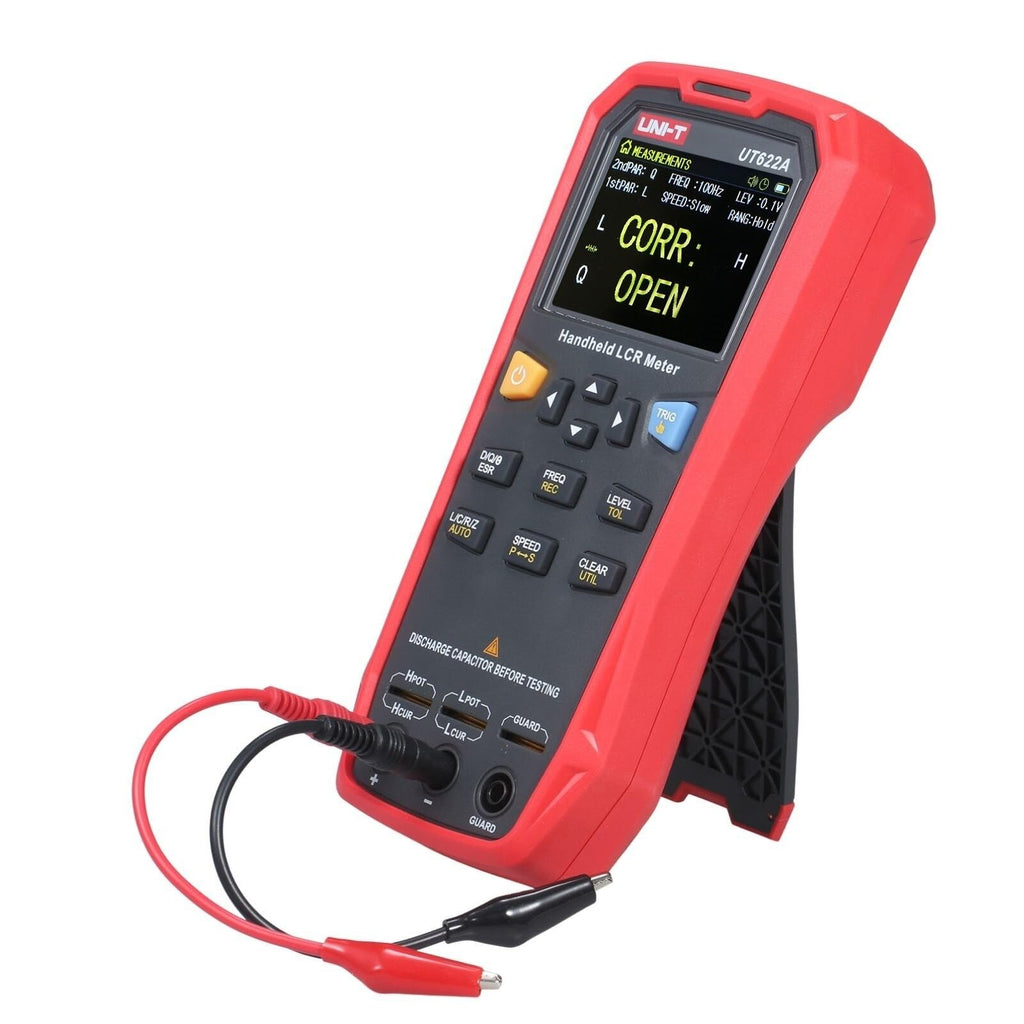

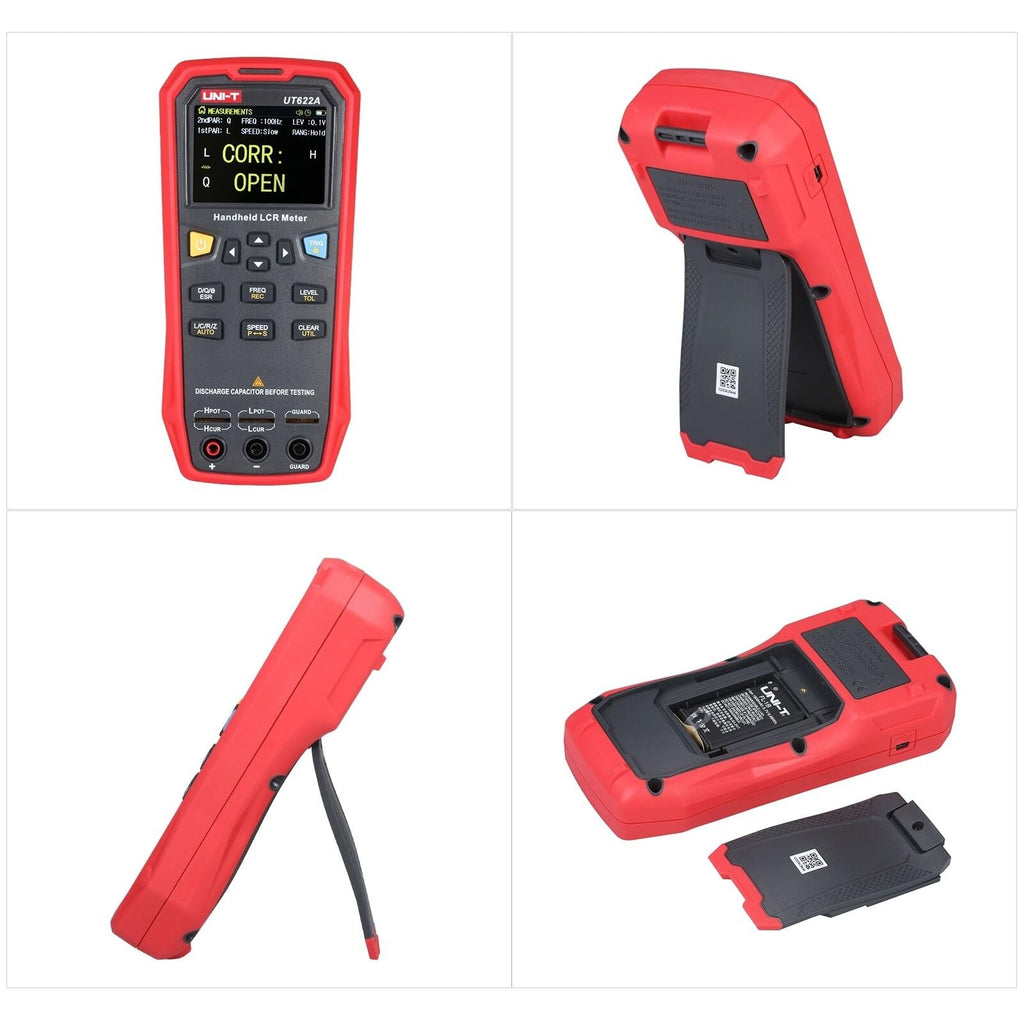

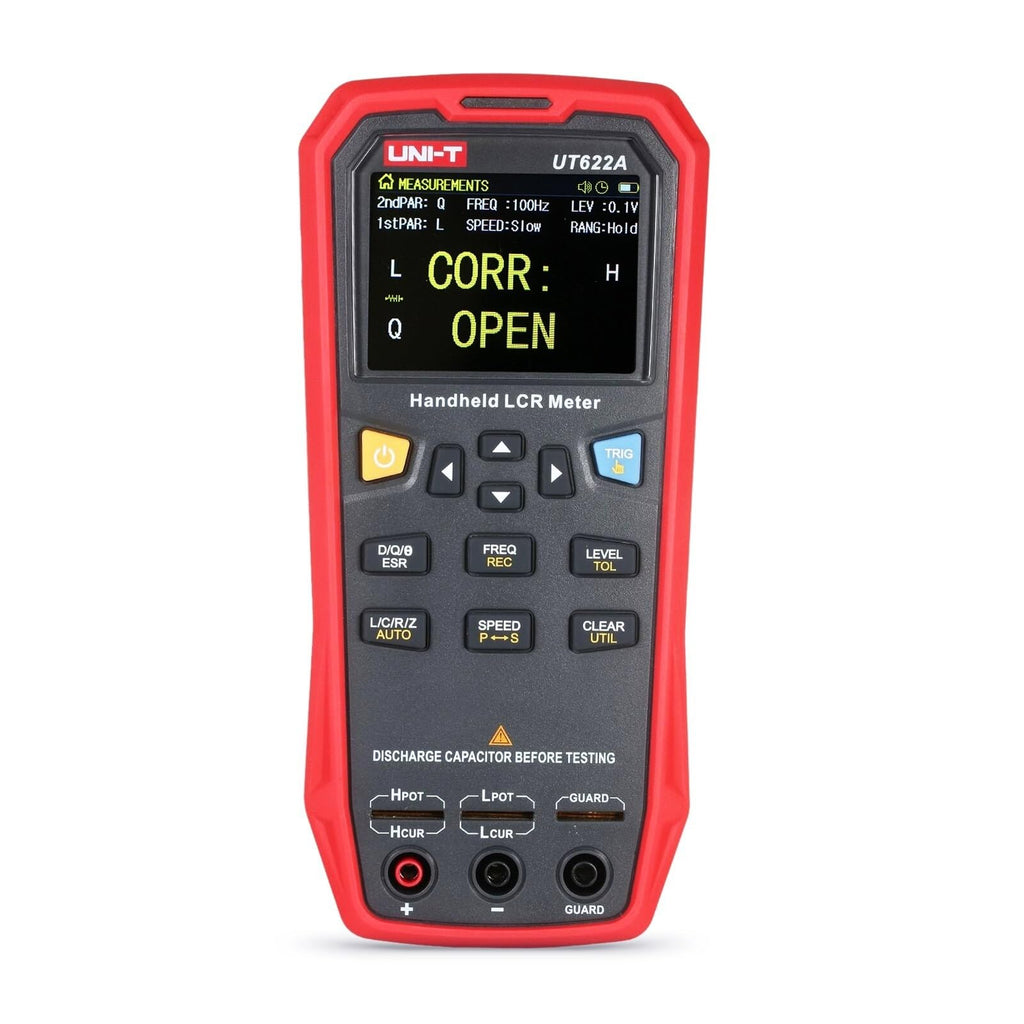

UNI-T UT622A Handheld LCR Meter High-Precision Multimeter Digital Bridge Capacimeter Inductance Capacitance Resistance Multi Tester Testing Tool
Sale price
$37.00
Regular price $185.00
Skip to product information
UNI-T UT622A Handheld LCR Meter High-Precision Multimeter Digital Bridge Capacimeter Inductance Capacitance Resistance Multi Tester Testing Tool
Sale price
$37.00
Regular price $185.00
- High Precision Measurement - Up to 0.1% measurement accuracy for reliable component testing; Multiple Test Frequencies - Selectable 100Hz, 120Hz, 1kHz, and 10kHz test frequencies
- Versatile Measurement Parameters - Primary (L/C/R/Z) and secondary (D/Q/θ/ESR) parameters; Adjustable Test Signal Level - Three test levels (0.1Vrms, 0.3Vrms, 1Vrms) for various component types
- Constant 100Ω Output Impedance - Ensures measurement stability and accuracy; Auto LCR Function - Automatically identifies component type for simplified testing
- Equivalent Mode Selection - Series or parallel circuit models for comprehensive component analysis; Tolerance Sorting - Adjustable 1%-20% tolerance range with LED pass/fail indication; Open/Short Circuit Correction - Clearing correction for improved measurement accuracy
- High-Visibility Display - 2.8-inch TFT LCD with 320×240 resolution and white backlight; Extended Battery Life - Up to 8 hours of operation from rechargeable 3.7V 1800mAh lithium polymer battery; USB Connectivity - Standard Mini-USB interface with SCPI command set for computer integration
