VC8045-II High Accuracy Digital Multimeter Resolution 10V Big LCD Display(Victor VC8045-II)
Sale price
$200.00
Regular price $1,496.00

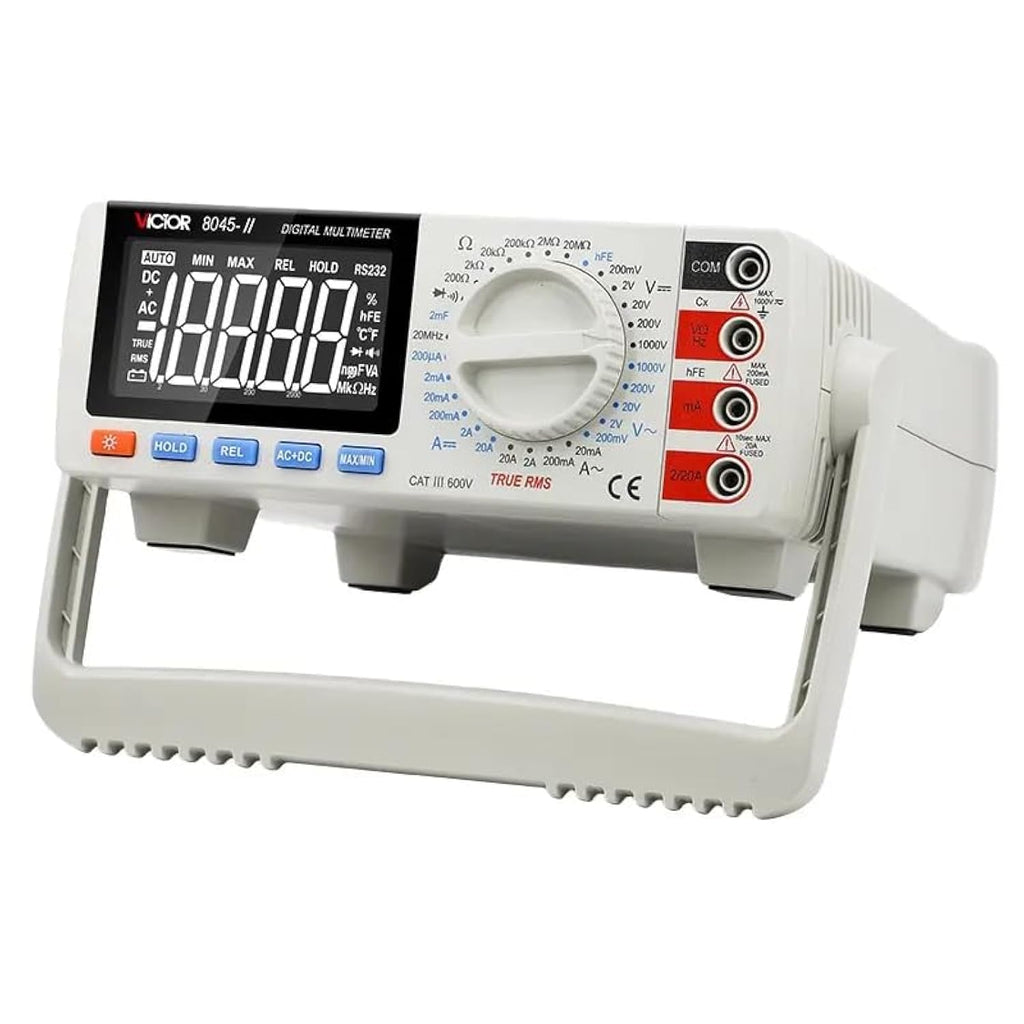

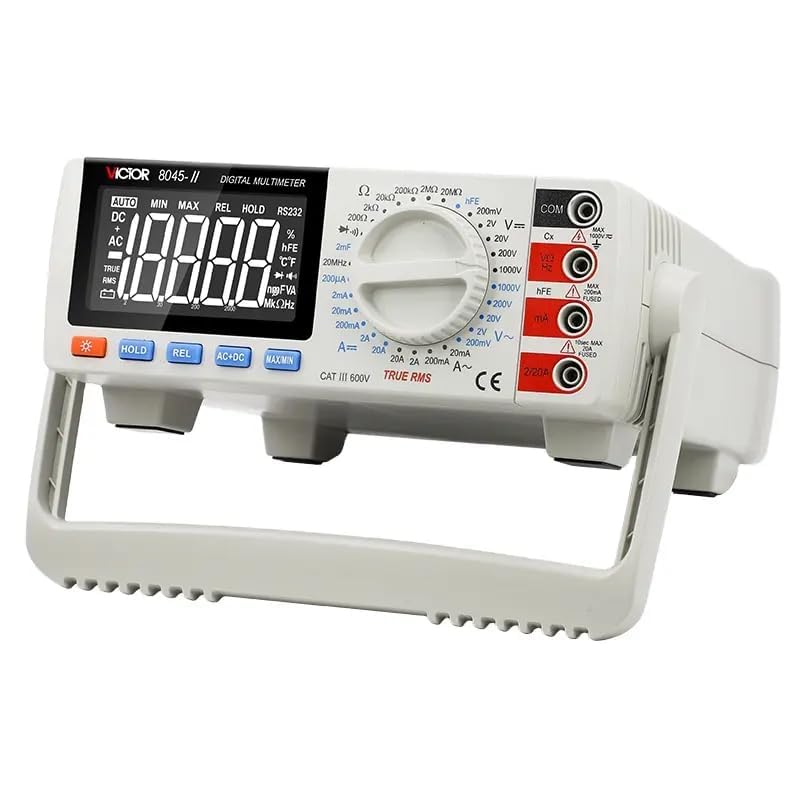

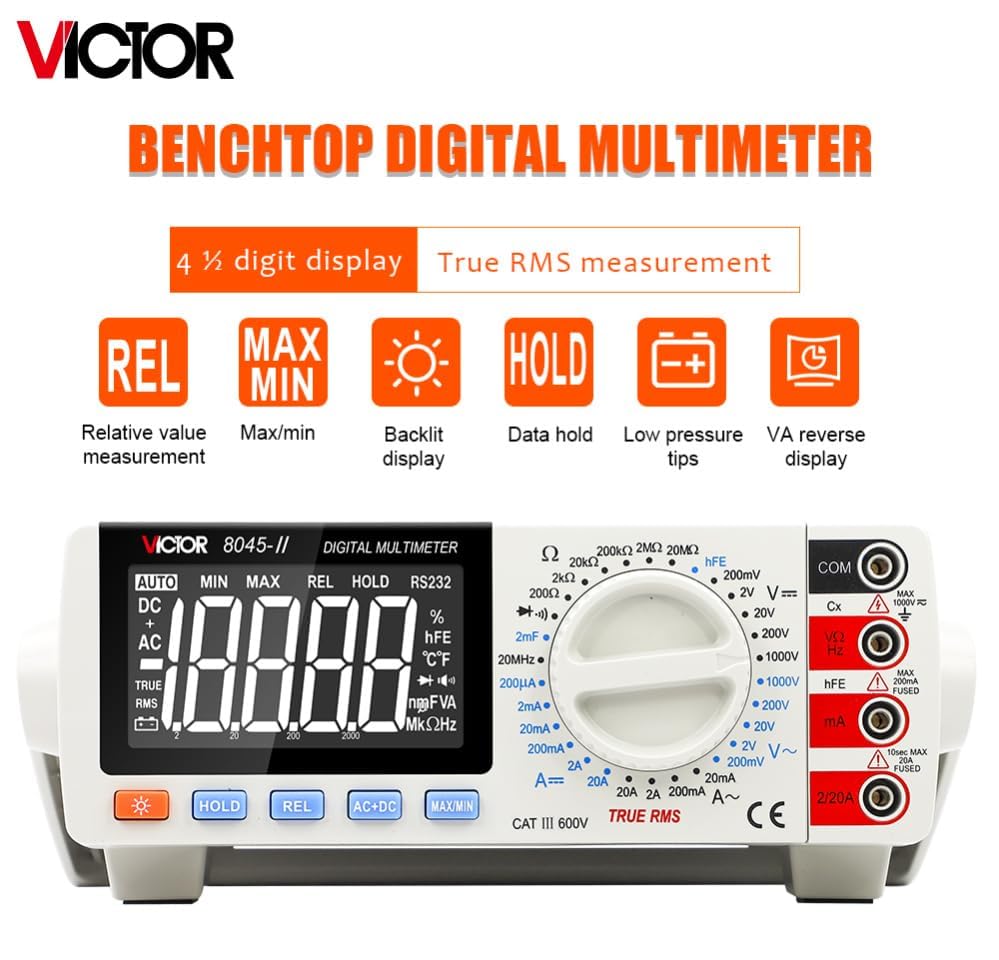

- This VICTOR/RuoShui 8045-II instrument digital multimeter is a high performance of 4½ digital bench multimeter for measuring DCV, ACV, DCA, ACA, OHM, CAP, Hz, hFE, Diodes and Continuity. The max. voltage is 1000V DC or AC peak value, resolution can be 10μV,and max. current is 20A,it also has the function of polarity auto-change, backlight display and directly reading.
- For AC measuring, it is performed by high accuracy TRUE RMS, can test the bandwidth of the frequency, and the TRUE RMS of any waveform can be accurately measured.

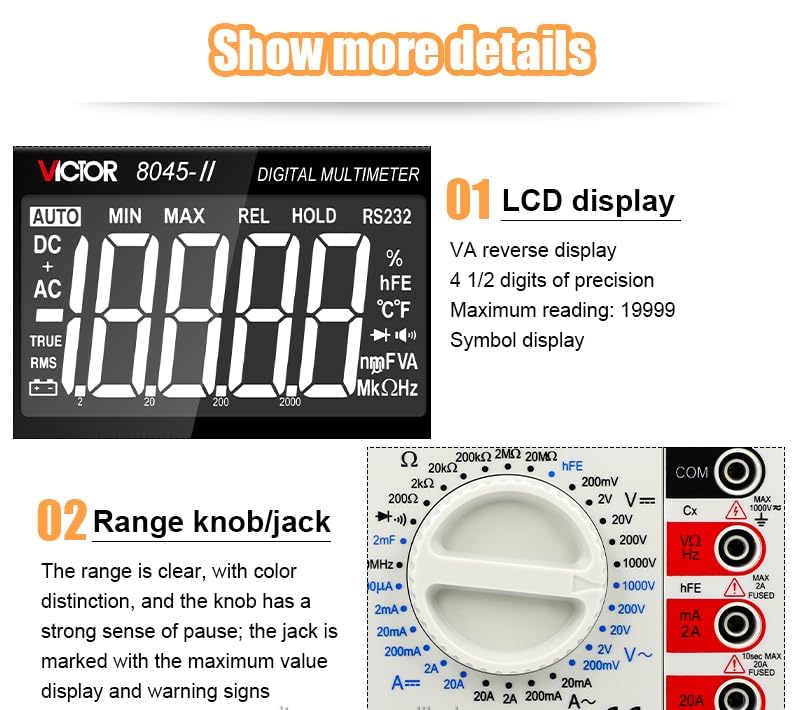

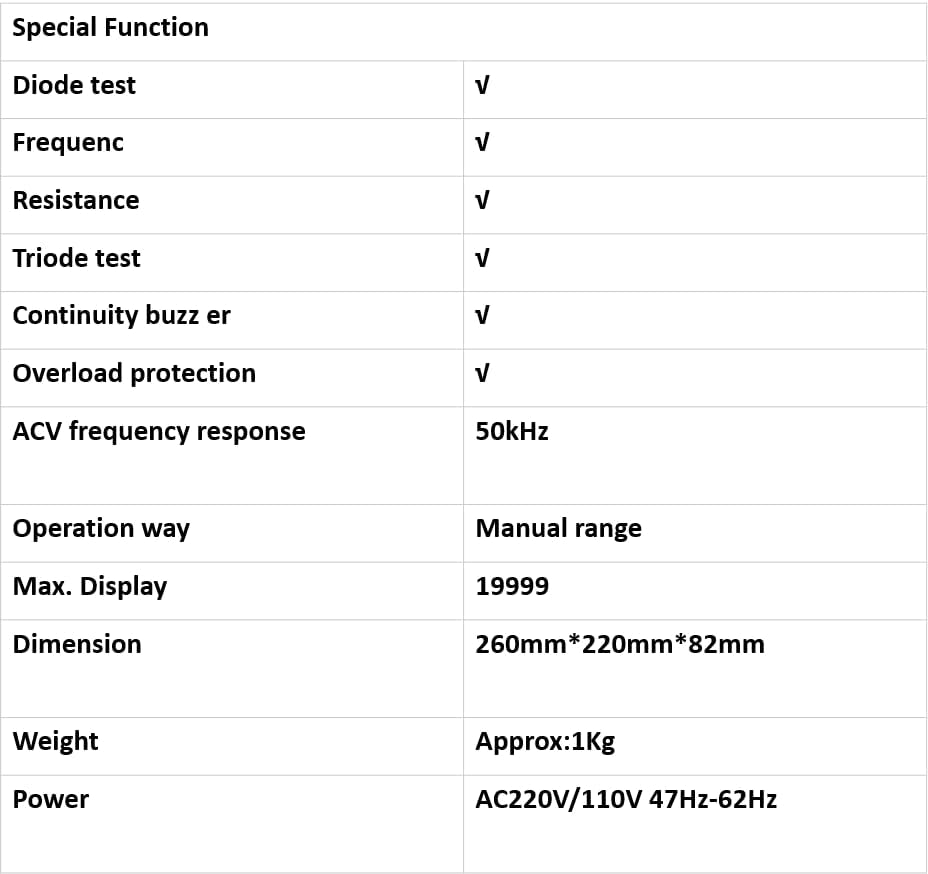

- ⑴ Power supply: 220V/ 110V AC ⑵ Manual range ⑶ 4 1/2-digit large LCD display with backlight(displaying range:75×40mm),max. reading: 19999. ⑷ Voltage measurement up to 1000V DC / 1000V AC. ⑸ DC, AC current up to 20A. ⑹ ACV frequency response: 50kHz.
- ⑺ Frequency, resistance, capacitance, triode, diode test and continuity test. ⑻ Overload protection:250V rms. ⑼ Operation environment: 0℃--40℃, relative humidity <75% RH ⑽ Dimension: 260mm×220mm×82mm. ⑾ Weight: approx.1kg.
- Accuracy =±(reading% + the lowest effective digit) preheating time: 30 min. Make sure the temperature is(23±5)℃,and the relative humidity <75%,one year guaranteed from the production date
