Unjointed Test Probe, Electrical Safety Test Probe, Ul Test Finger
Sale price
$48.00
Regular price $238.00
Skip to product information
Unjointed Test Probe, Electrical Safety Test Probe, Ul Test Finger
Sale price
$48.00
Regular price $238.00

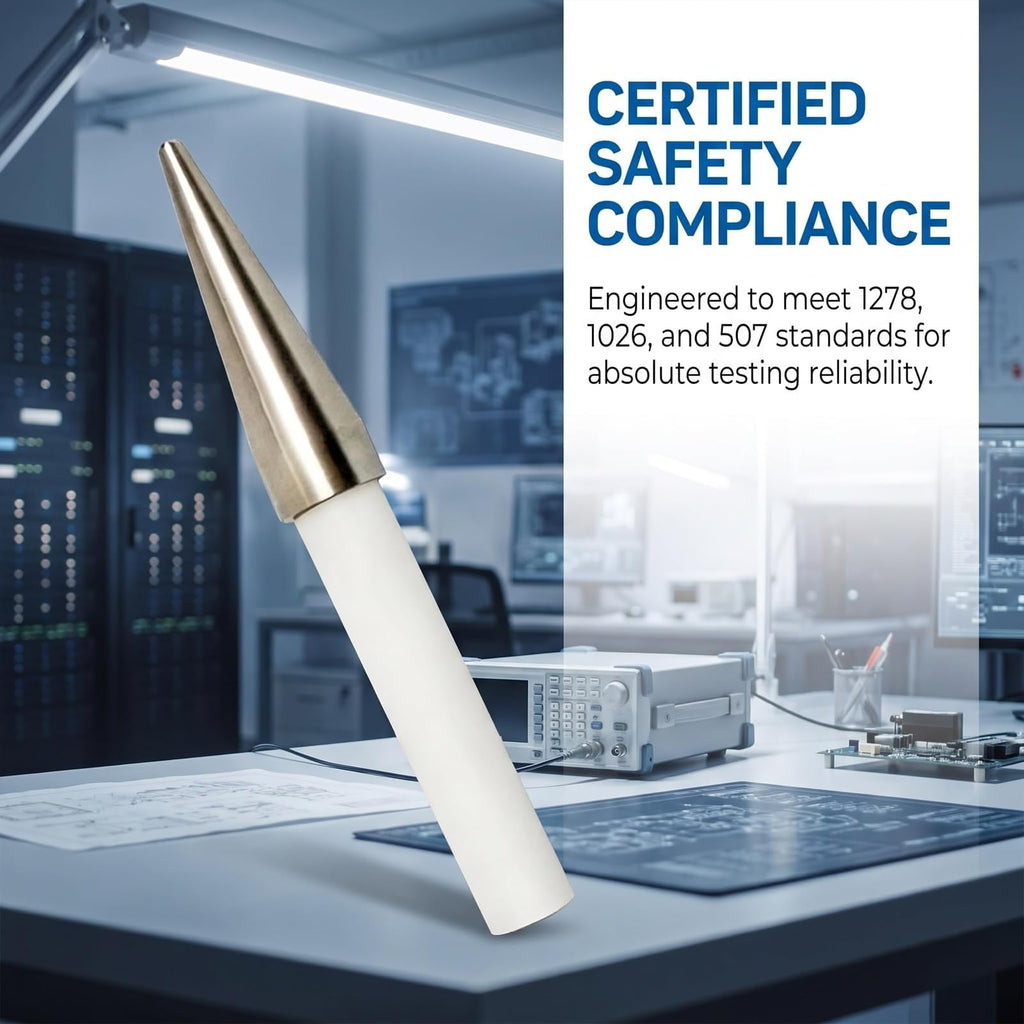

- 【DESIGNED FOR UL ELECTRICAL SAFETY TESTING】This UL straight test finger probe is designed for accessibility evaluations associated with UL 1278, UL 1026, and UL 507 testing procedures. The standardized probe structure helps users assess whether designated openings and accessible areas permit finger-like contact with internal components. Suitable for electrical product inspection, laboratory testing, and routine safety evaluation applications.

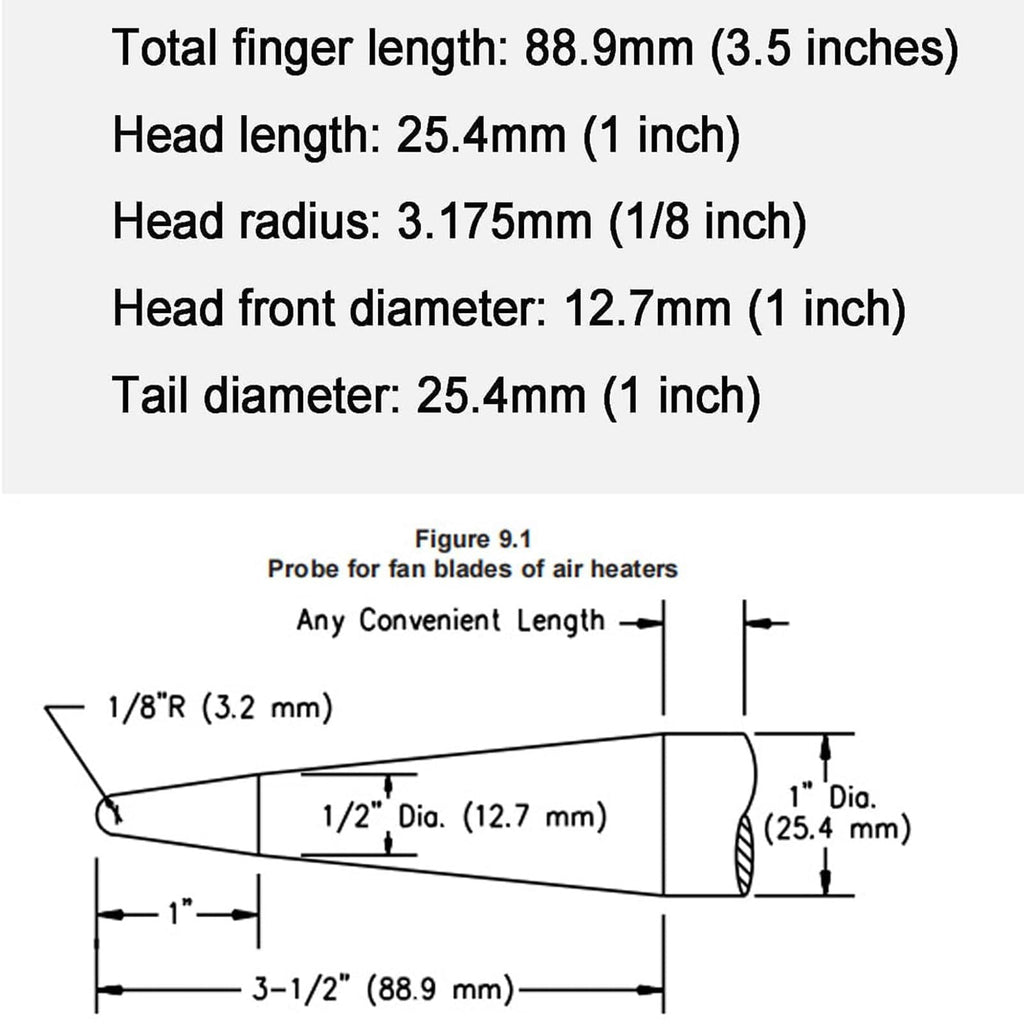

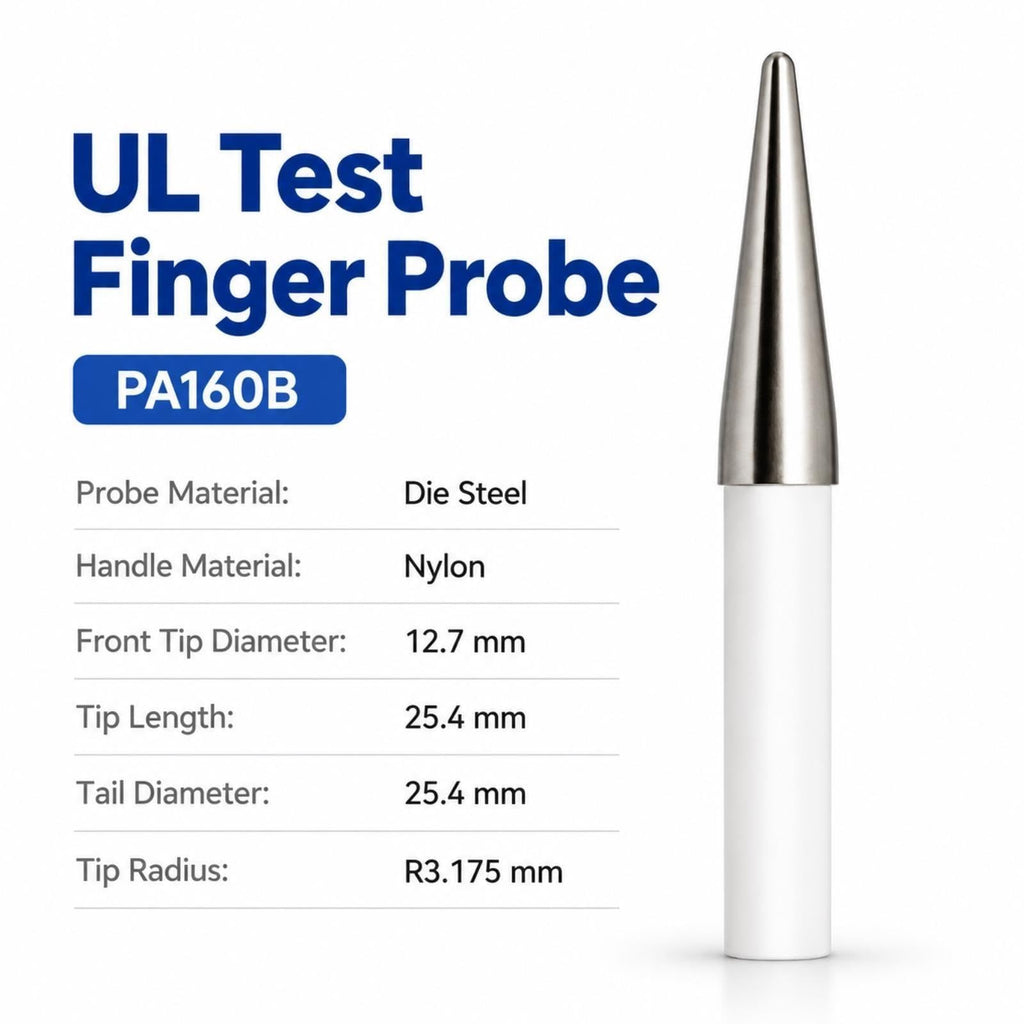

- 【STANDARDIZED DIMENSIONS FOR CONSISTENT TESTING】Features a total length of 88.9 mm (3.5 in), a probe head length of 25.4 mm (1 in), a rounded tip radius of R3.175 mm (0.125 in), a head diameter of 12.7 mm (0.5 in), and a tail diameter of 25.4 mm (1 in). The defined dimensions support consistent probe positioning during repeated accessibility checks and electrical equipment inspection procedures.

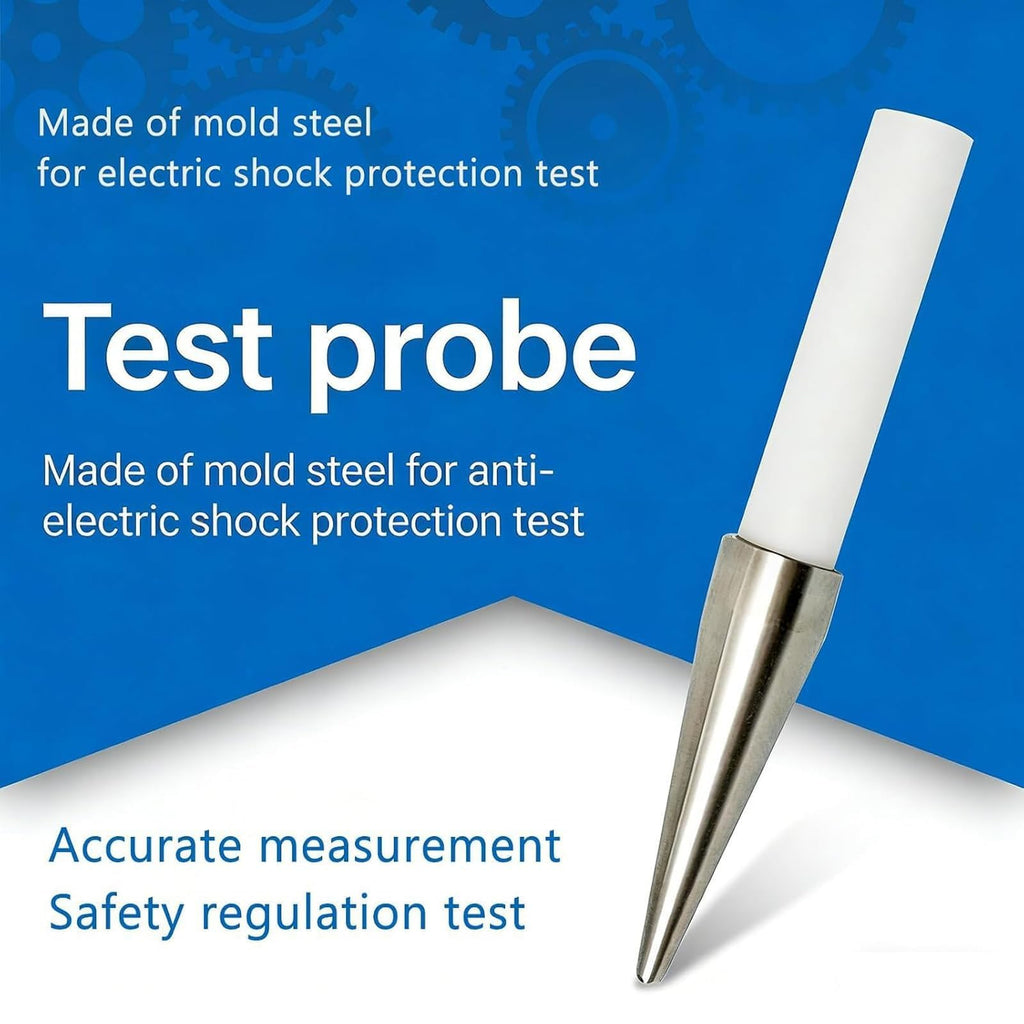

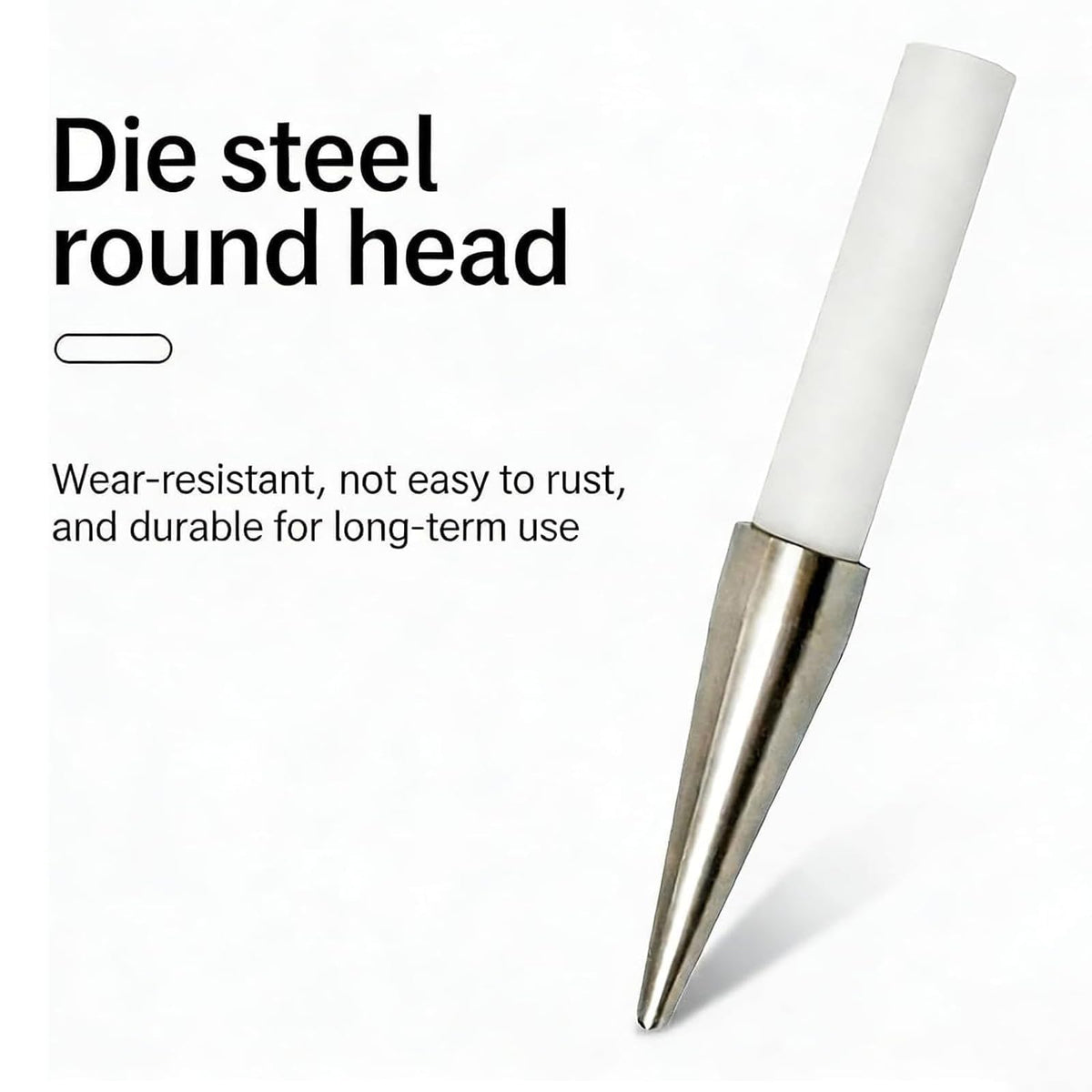

- 【DURABLE DIE STEEL PROBE CONSTRUCTION】Manufactured with a sturdy die steel probe tip designed for repeated contact during testing applications. The solid metal construction provides mechanical support during manual inspection, while the finished surface allows convenient handling and routine maintenance. Suitable for use in electrical testing laboratories, manufacturing quality-control departments, and product inspection environments.

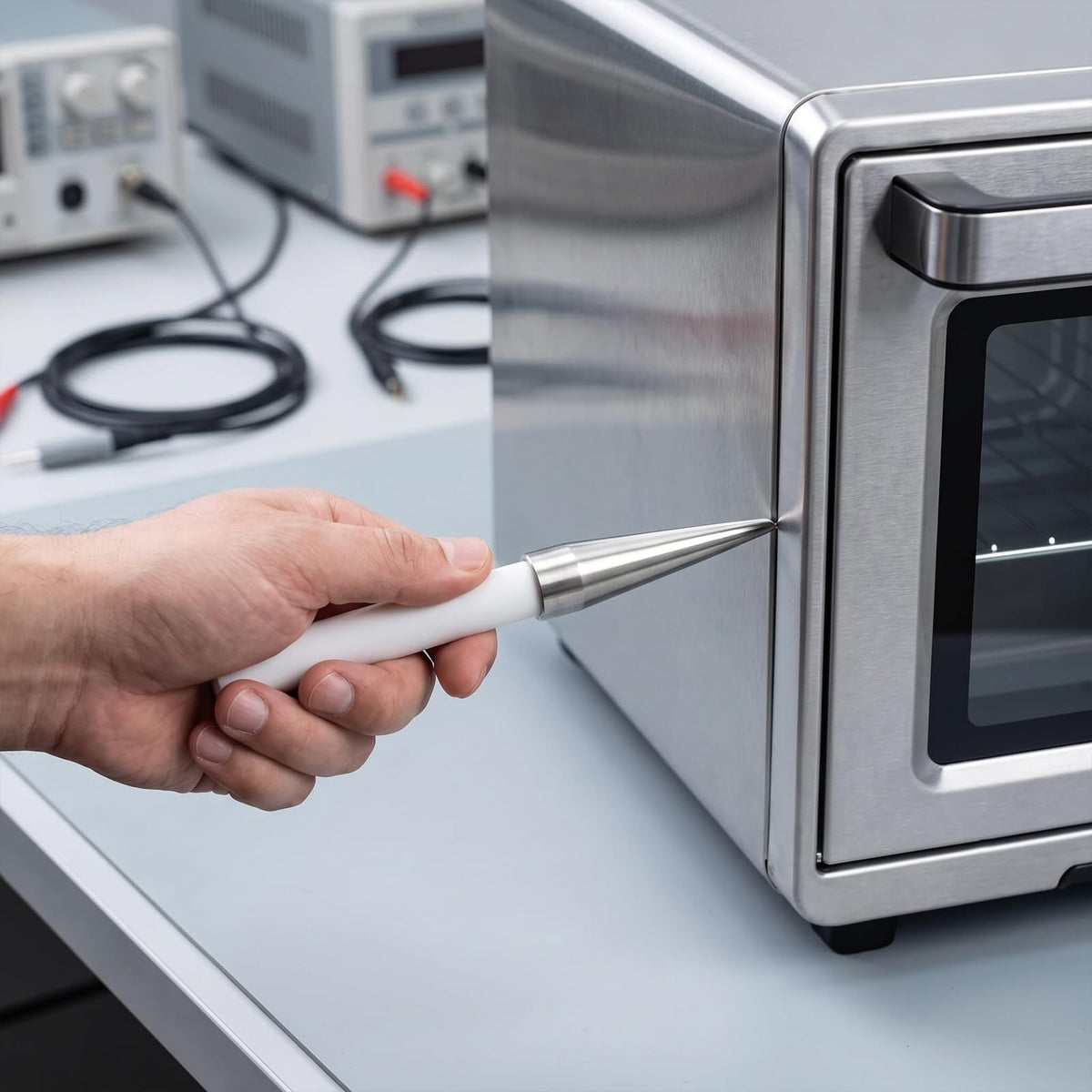

- 【SIMULATED FINGER CONTACT ASSESSMENT】Designed to represent finger-like contact when evaluating the accessibility of internal electrical components. The straight probe structure allows technicians to check whether compatible openings, gaps, and equipment enclosures permit contact with designated internal areas under the applicable test conditions. This practical design supports repeatable accessibility assessments during product development and inspection.
- 【VERSATILE ELECTRICAL EQUIPMENT INSPECTION】Suitable for accessibility testing of compatible household appliances, commercial electrical devices, electrical enclosures, and industrial equipment. This electrical safety test finger probe can be incorporated into product development, manufacturing inspection, laboratory evaluations, and quality-control procedures to assist technicians in assessing access to potentially hazardous internal parts.
